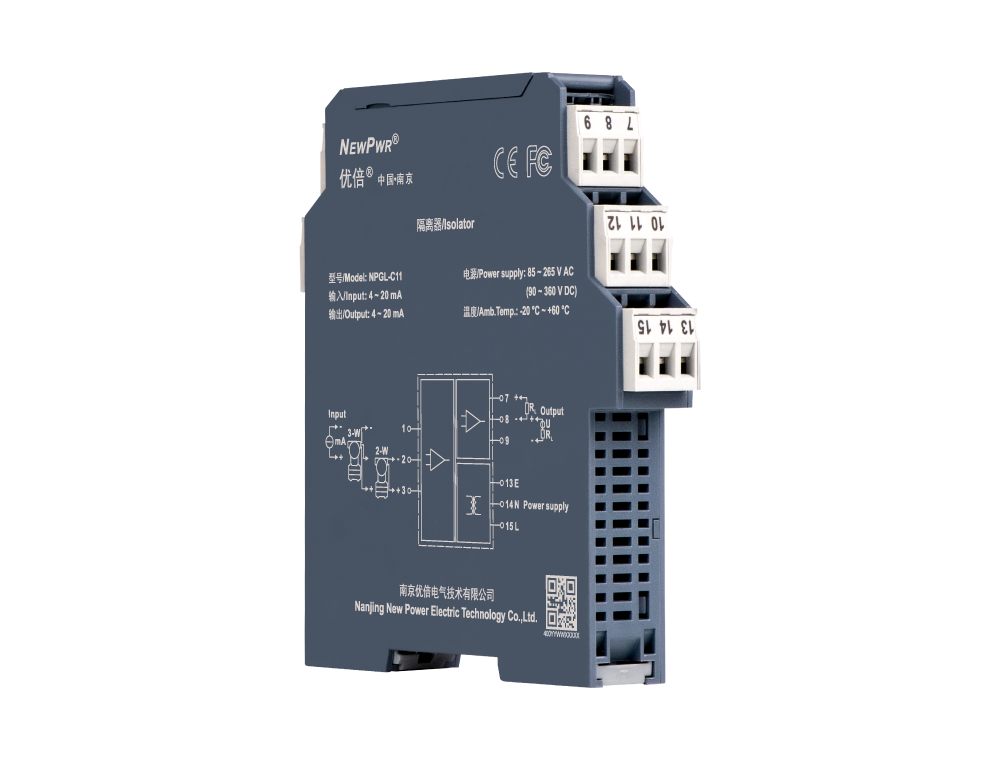

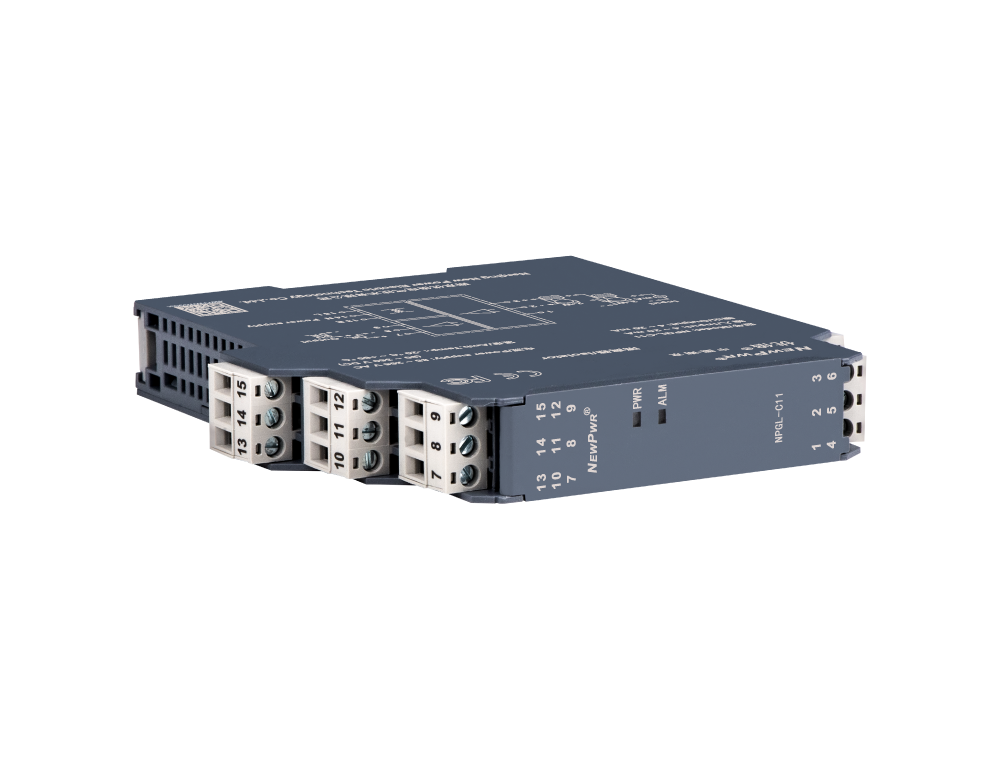

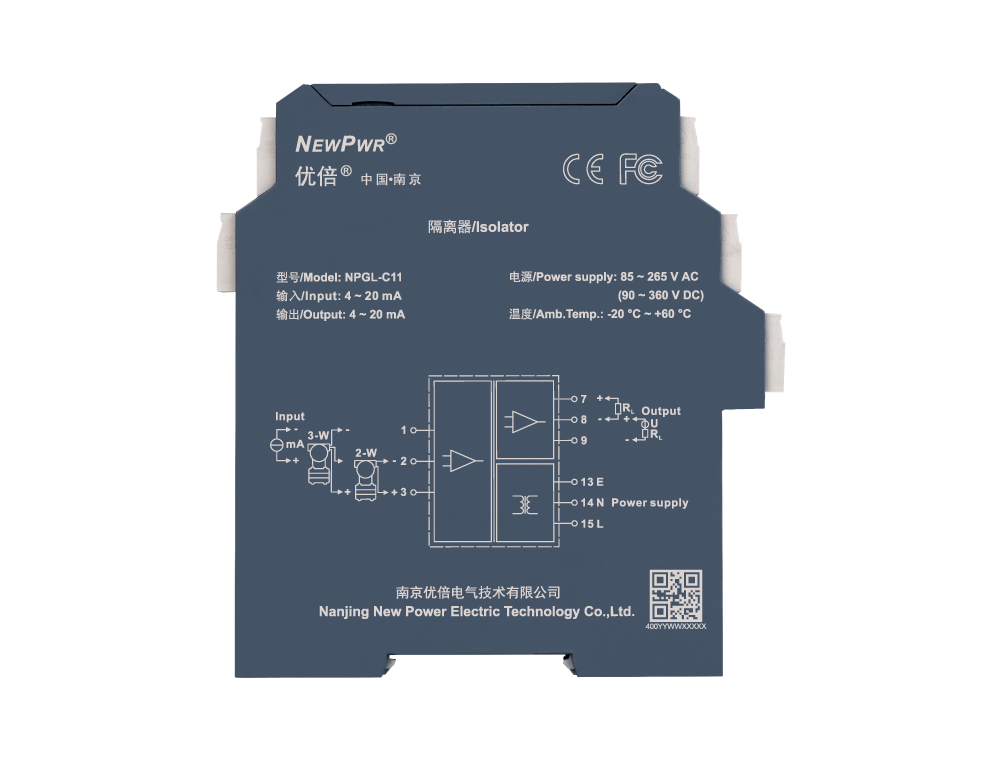

Product Isolator NPGL-C11

NPGL-C11

This isolator detects loop current and converts it to 4~20mA signals, and also provides transmitters with power. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.

Input signal

Output signal

Channels

Power Supply Mode

HART

Share
NPGL-C11
Product details Technical data Download
contrast

【Core technology】



【Installation and disposal】






Installation                                               Disposal




【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Power supply 85V AC ~ 265 V AC (90 V DC ~ 360 V DC)
Input
Input signal 4 ~ 20 mA
Line resistance ≤ 100 Ω
Available voltage open-circuit voltage ≤ 26V; voltage: ≥ 22V at 20mA
Output
Output signal 4 ~ 20 mA
Load resistance RL ≤ 550 Ω
Transfer characterisics
Accuracy 0.1 %F.S.
Temperature drift 30 ppm/℃
General parameters
Response time ≤ 500 ms
Power dissipation ≤ 2.5 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 1500V AC (Input /Output/Power supply)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
State
Output states Whatever input fault status (except breakage or short circuit, the output is 0V/mA), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) × 110mm (H) × 117mm (D)
Connection method DIN35 mm
Certified data
Product approvals CE, FCC
