Product Temperature Transmitter NPWD-C1L.TC

NPWD-C1L.TC

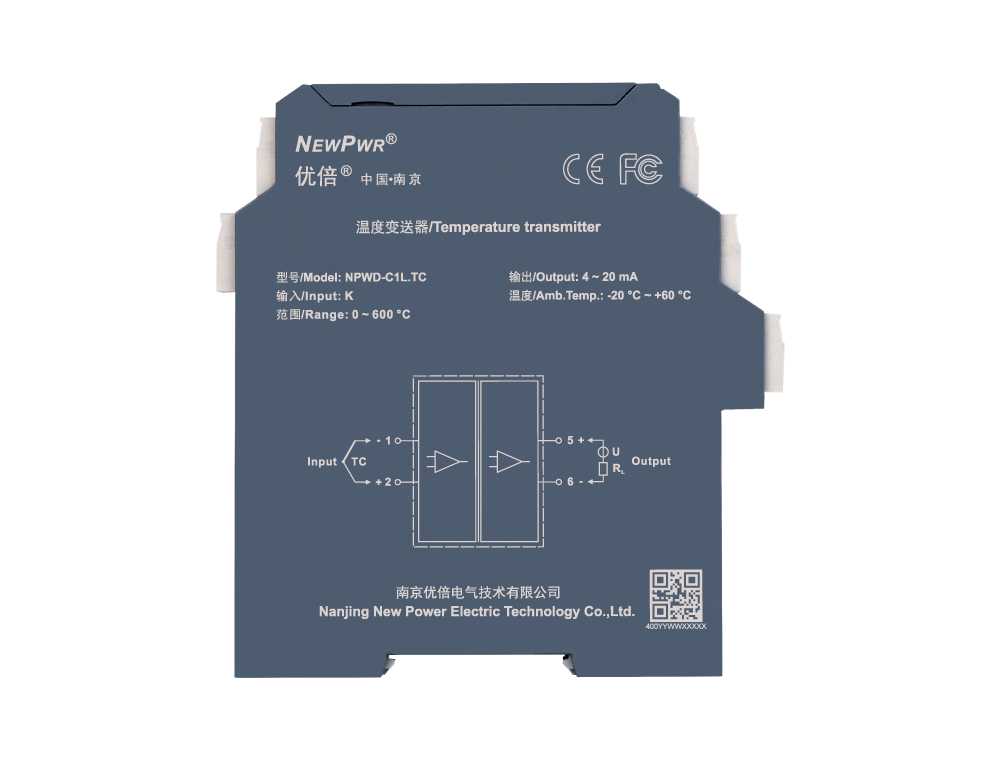

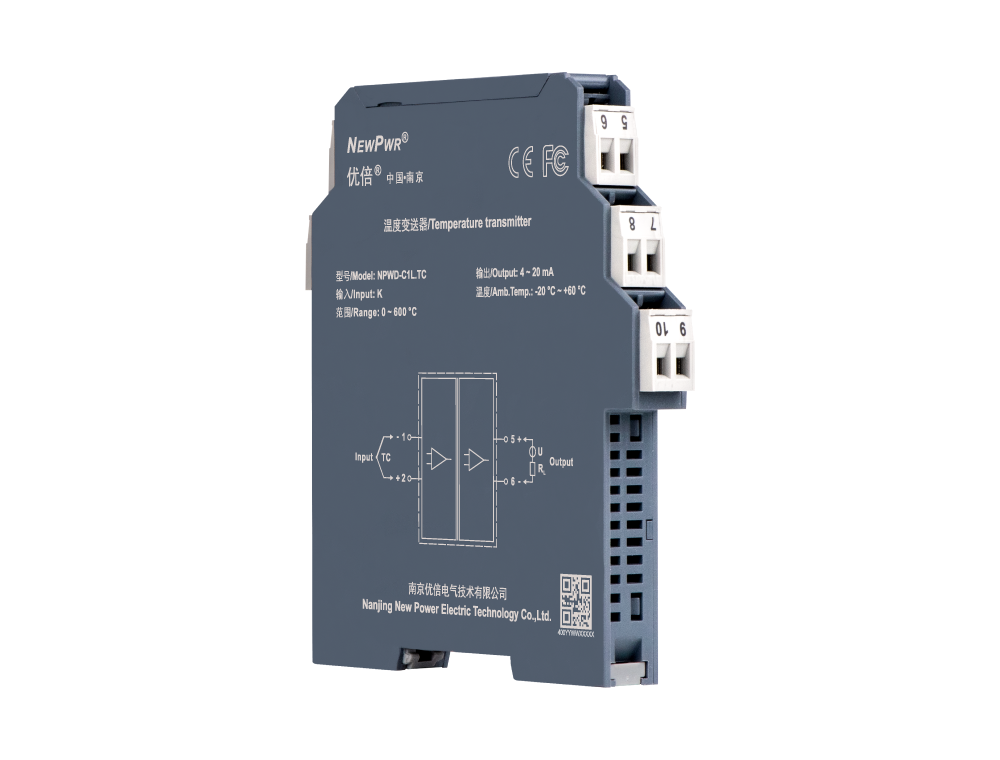

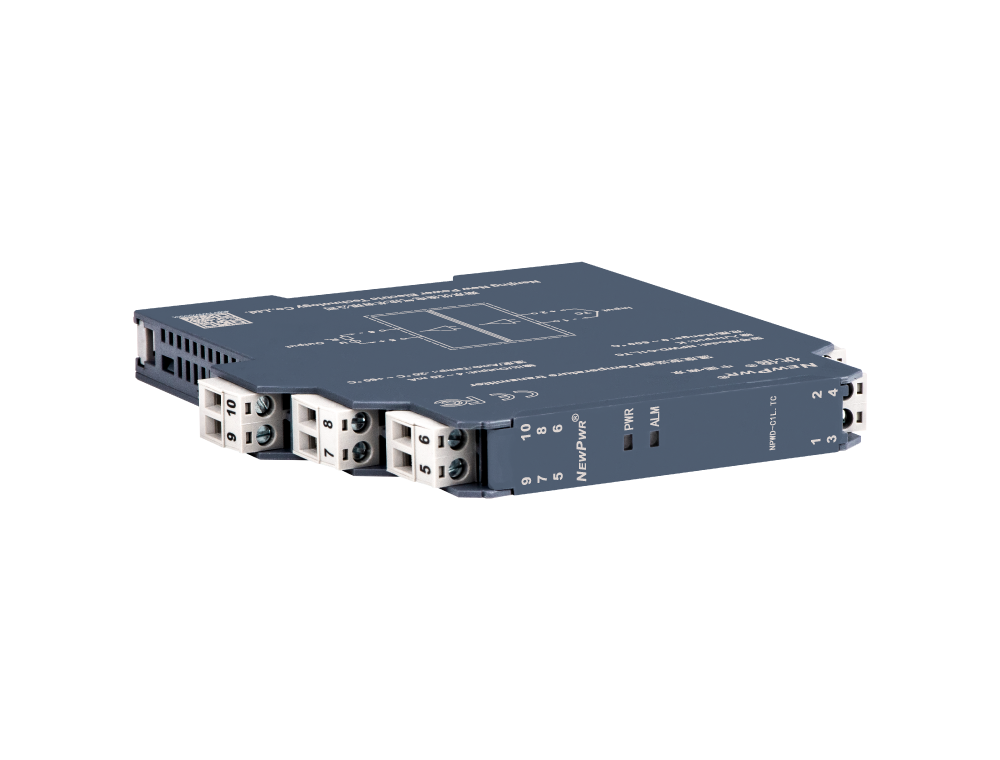

This temperature transmitter converts the thermocouple signals to 4~20mA signals. It has loop powered. The input and output is galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.

Output signal

Channels

Power Supply Mode

HART

Ex

Share
NPWD-C1L.TC
Product details Technical data Download
contrast

【Core technology】



【Installation and disposal】






Installation                                               Disposal





【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Loop Powered 12 ~ 30 V DC
Input
Input signal K, E, S, B, J, T, R, N, etc.
Output
Output signal 4 ~ 20 mA
Load resistance RL < [(U-12)/0.02]Ω; U is loop powered voltage
Transfer characterisics
Conversion accuracy-K -200 ℃ ~ +1372 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-E -100 ℃ ~ +1000 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-J -100 ℃ ~ +1200 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-N -200 ℃ ~ +1300 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-S -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Conversion accuracy-R -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Conversion accuracy-T -20 ℃ ~ +400 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-B +400 ℃ ~ +1820 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Temperature drift 30 ppm/℃
General parameters
Compensation accuracy 1°C (Temperature compensation range: -20°C ~ +60°C)
Response time ≤ 500 ms
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 1500V AC (Input /Output)
Insulation resistance ≥ 100 MΩ (Input /Output)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
State
Output states Whatever input fault status (except breakage, the output is 3.5mA), the output follows the input within measuring range. And the maximum value would not exceed 22mA ,the maximum output value would not less than 3.5mA
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
NPEXA-C11

一入一出

热电偶输入安全栅

De-contrast Clear contrast bar
