Energy Transmitter

NPDL-C00211021

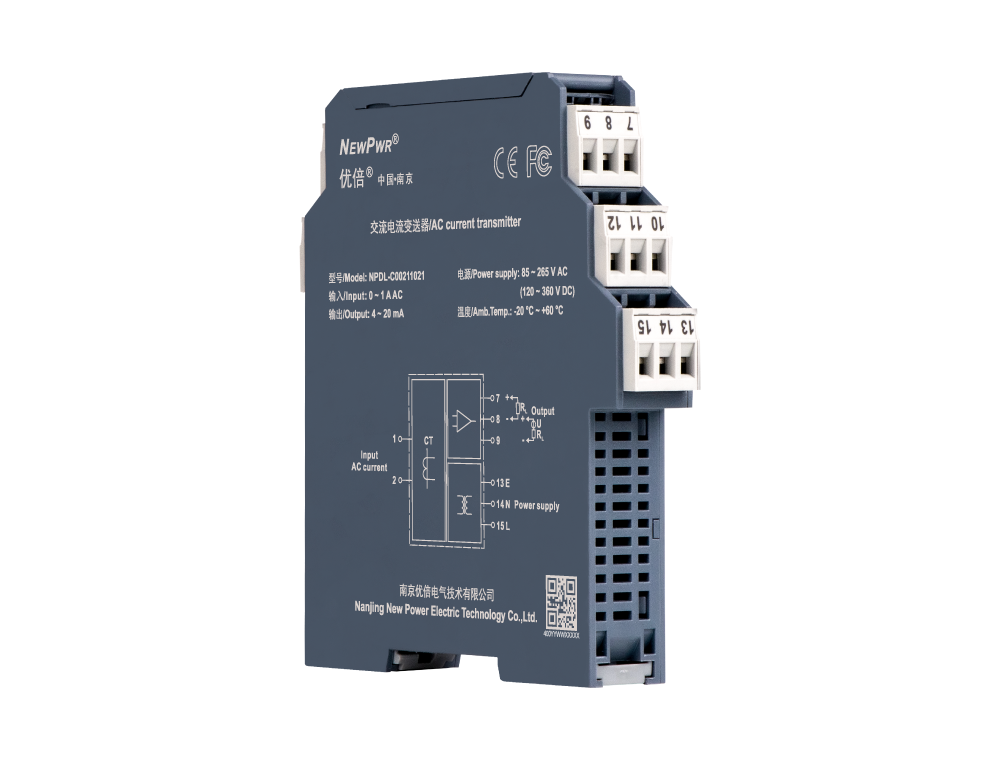

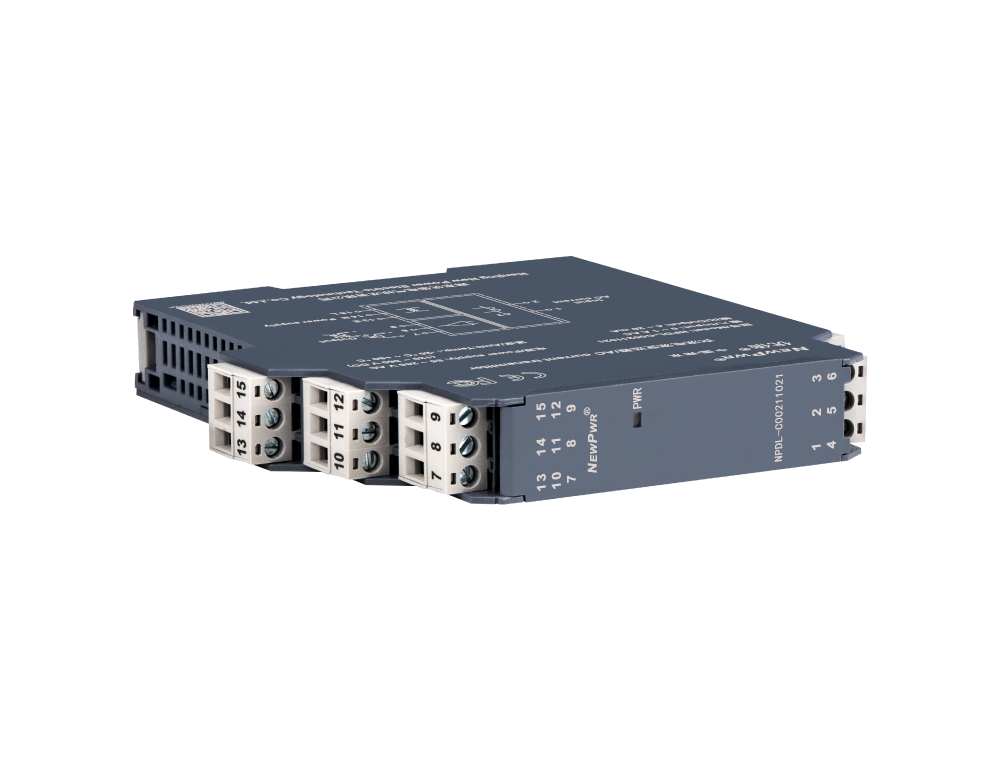

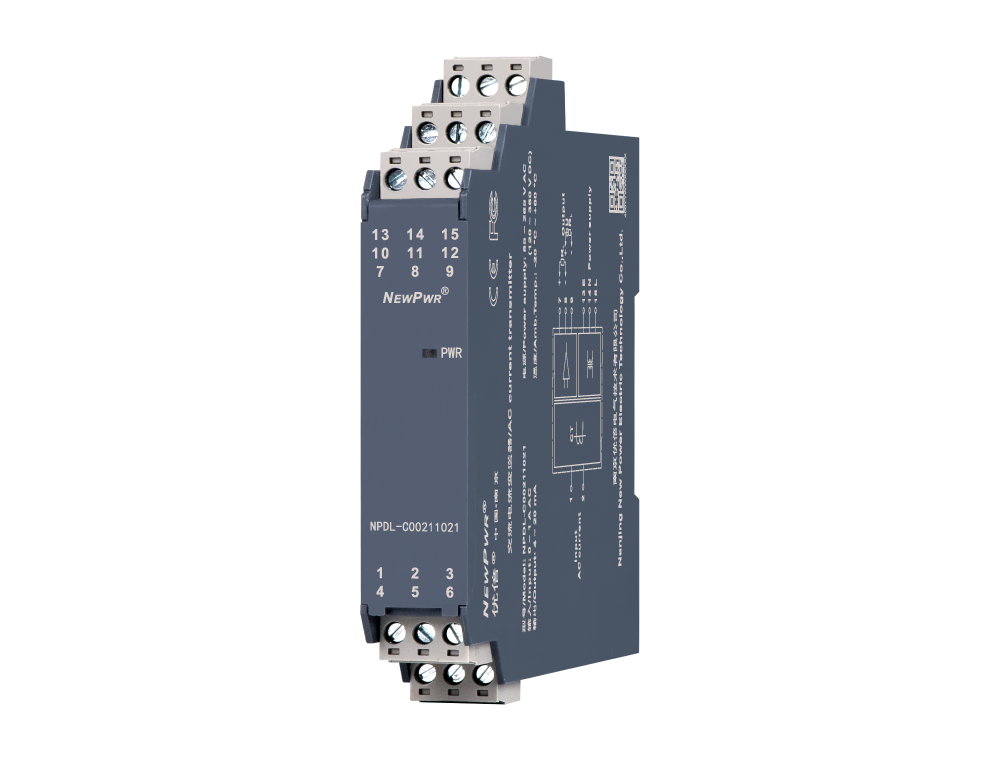

This AC current transmitter converts the 0 ~ 1 A AC signals to current signals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other.

Share

NPDL-C00211021

Technical data Download

contrast

【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

Supply

Power supply

85V AC ~ 265 V AC (120 V DC ~ 360 V DC)

Input

Input signal	0 ~ 1 A AC
Frequency range	40 Hz ~ 400 Hz
Overload capacity	double input nominal value

Output

Output signal	4 ~ 20 mA
Load resistance	RL ≤ 550 Ω

Transfer characterisics

Accuracy	0.2 %F.S.（0 ~ 120%）
Temperature drift	50 ppm/℃

General parameters

Response time	＜ 330 ms
Power dissipation	＜ 2W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 1500V AC (Input /Output/Power supply)
Insulation resistance	≥ 100 MΩ (Input /Output/Power supply)
