Product

Isolator

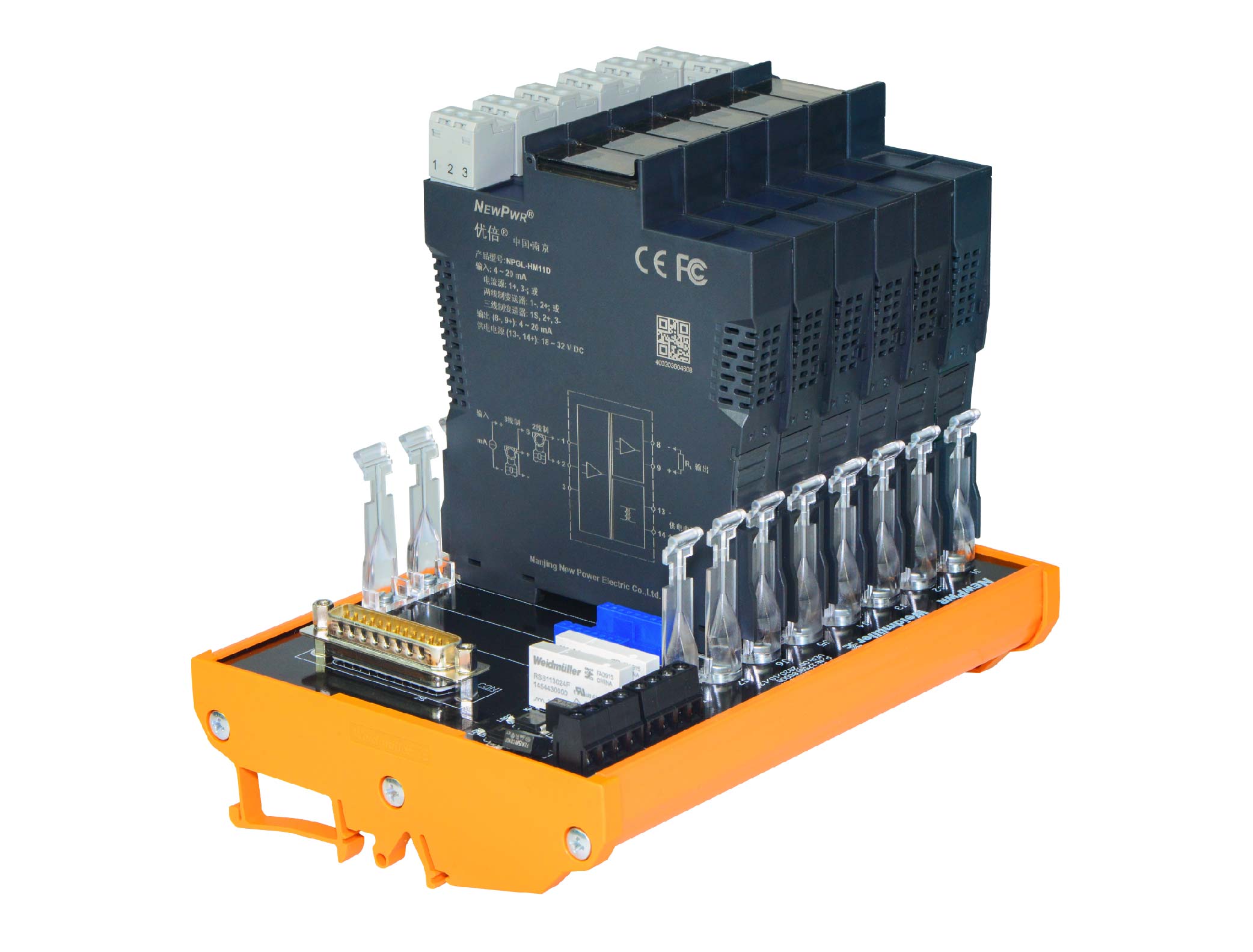

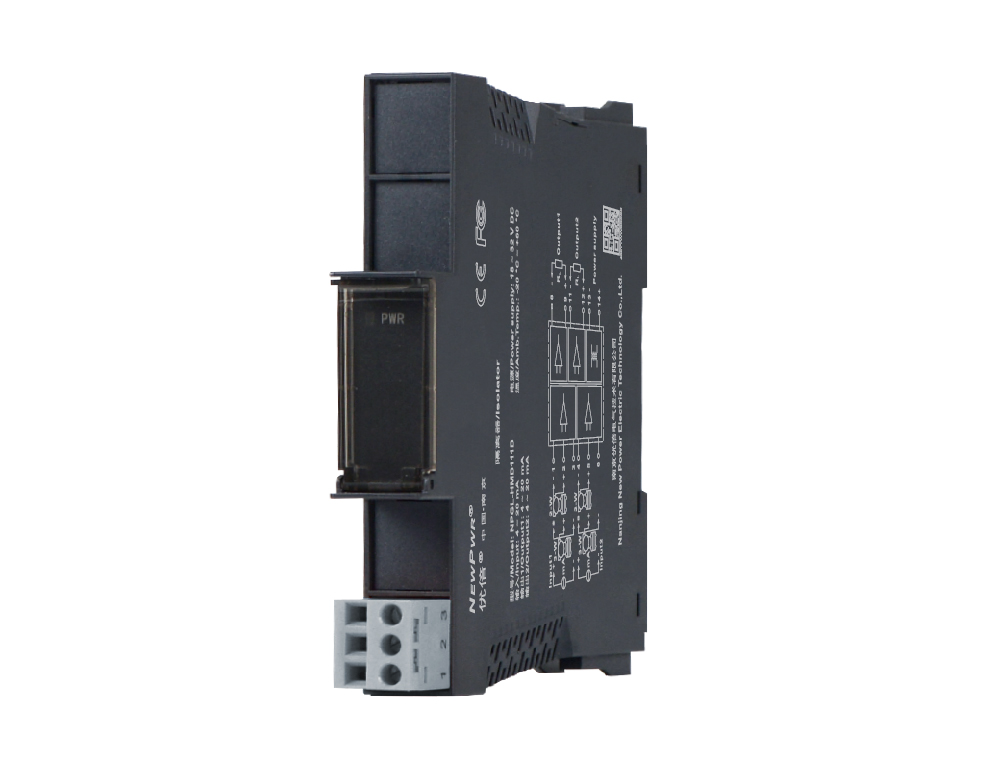

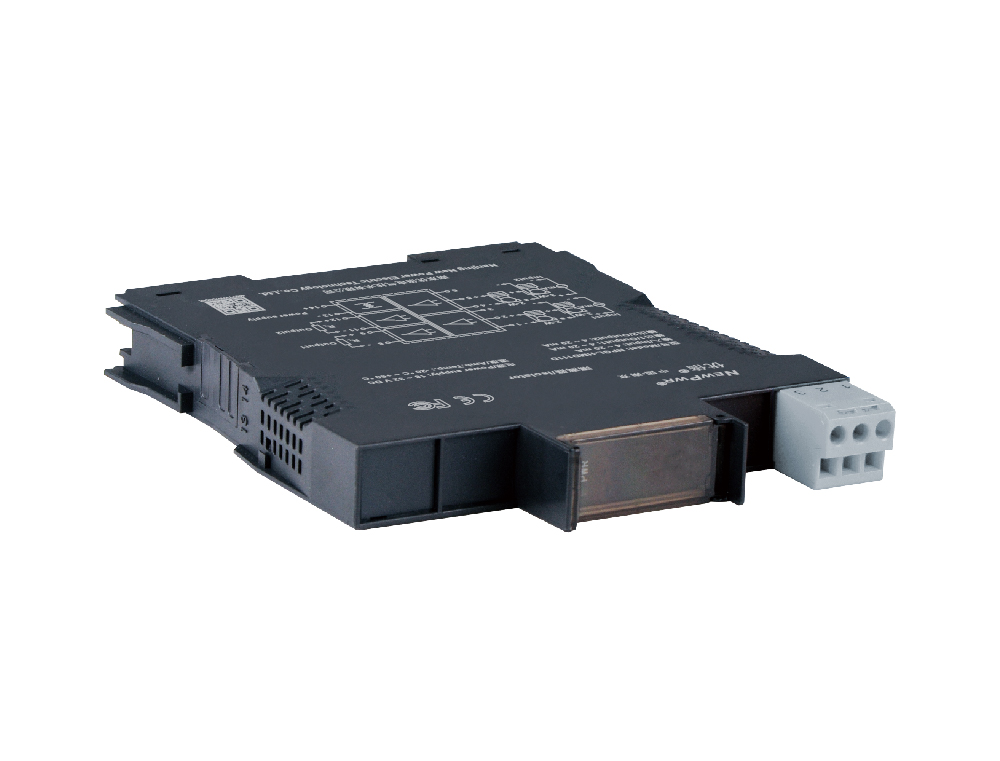

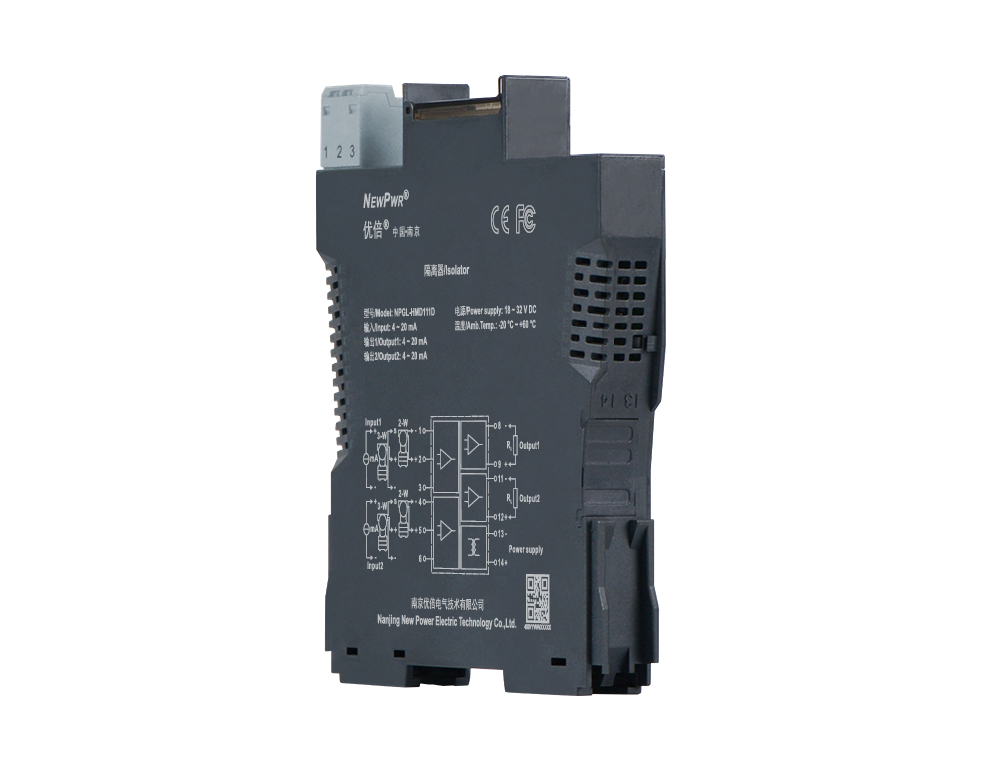

NPGL-HMD111D

This isolator detects loop current and converts it to 4~20mA signals, and also provides transmitters with power. It allows transmission of HART communication signals. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other.

Input signal

4～20 mA

Output signal

4～20 mA

Channels

2 inputs/2 outputs

Power Supply Mode

Backplane power supply

HART

Support

Share

NPGL-HMD111D

Product details Technical data Download

contrast

【Core technology】


【Installation and disposal】

安全栅安装.gif 安全栅拆卸.gif

Apparatus installation Apparatus disposal

底板安装.gif 底板拆卸.gif

Backplan installation Backplan disposal

【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

Supply

Power supply

18 ~ 32 V DC

Input

Input signal	4 ~ 20mA, HART
Line resistance	approx. 50Ω
Available voltage	open-circuit voltage ≤ 26V; voltage: ≥ 15.5V at 20mA

Output

Output signal	4 ~ 20mA, HART
Load resistance	RL ≤ 450 Ω

Transfer characterisics

Accuracy	± 0.1 %F.S.
Temperature drift	0.005%F.S./℃

General parameters

Response time	≤ 2 ms
Power dissipation	2.5 W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 1500 V AC (Input /Output); ≥ 500 V AC (Power supply /Output)
Insulation resistance	≥ 100 MΩ (Input /Output/Power supply)
