Product Temperature Transmitter NPWD-C1AD.TC

NPWD-C1AD.TC

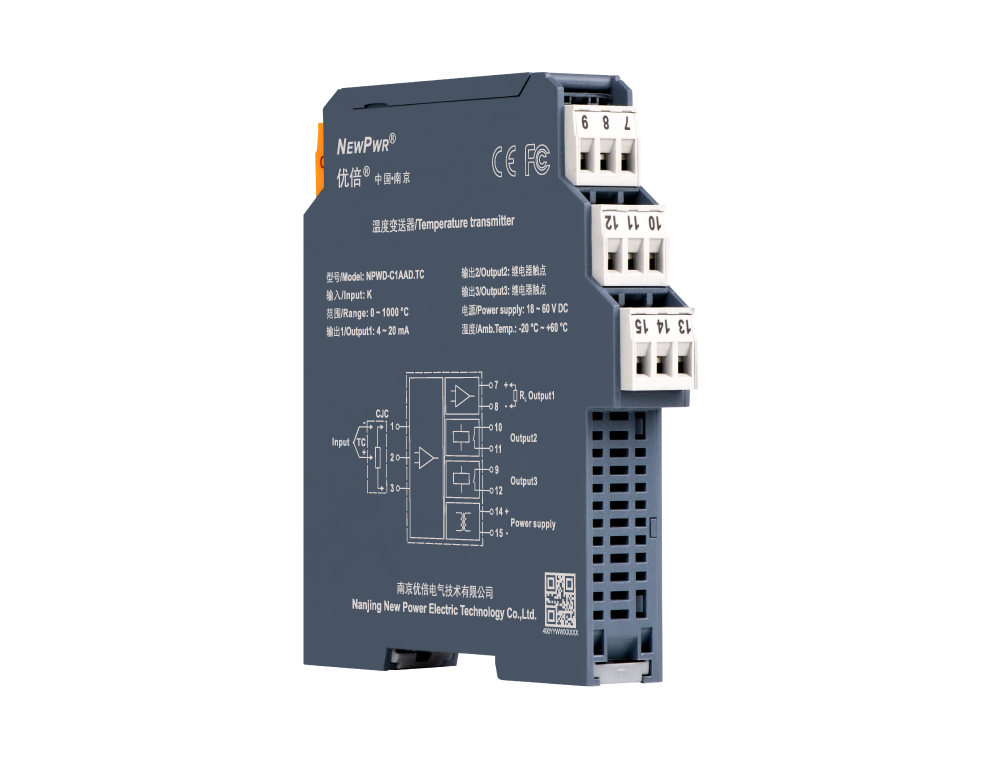

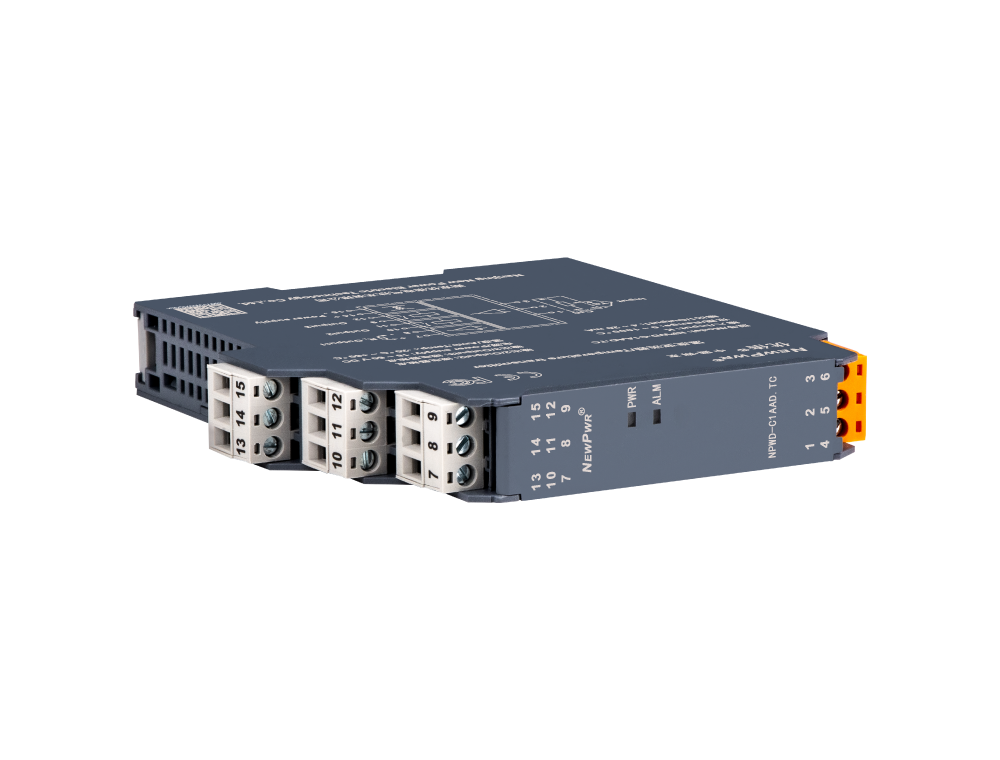

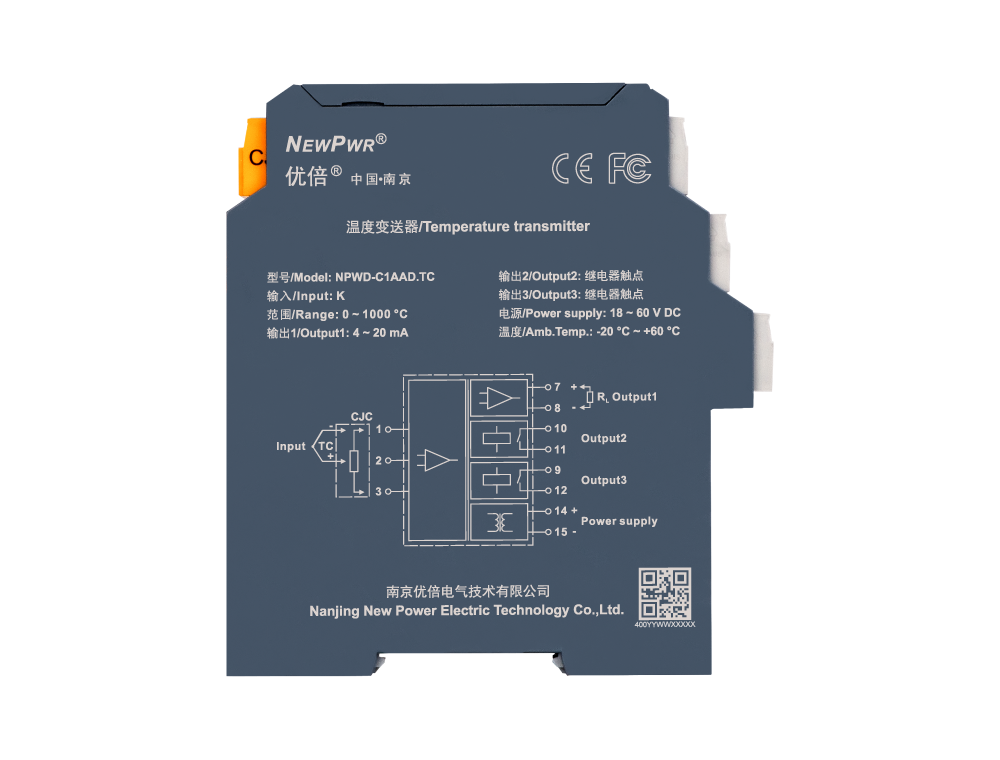

This temperature transmitter converts the thermocouple signals to 4~20mA signals, one relay alarm output. It has external cold junction compensation terminals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. The self-test function is also available on this device. Calibrate the apparatus or modify parameters by using a handheld programmer.

Output signal

Channels

Power Supply Mode

HART

Ex

Share
NPWD-C1AD.TC
Product details Technical data Accessory
contrast

【Core technology】



【Installation and disposal】






Installation                                               Disposal





【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal K
Output
Output signal Output1: 4 ~ 20mA; Output2: relay contact
Load resistance RL ≤ 550 Ω
Load capacity 250VAC/2A, 30VDC/2A
Transfer characterisics
Conversion accuracy-K -200 ℃ ~ +1372 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-E -100 ℃ ~ +1000 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-J -100 ℃ ~ +1200 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-N -200 ℃ ~ +1300 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-S -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Conversion accuracy-R -50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Conversion accuracy-T -20 ℃ ~ +400 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-B +400 ℃ ~ +1820 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Temperature drift 30 ppm/℃
General parameters
Compensation accuracy 1°C (Temperature compensation range: -20°C ~ +60°C)
Response time ≤ 500 ms
Power dissipation 1.5 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 1500V AC (Input /Output/Power supply)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
State
Output states Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
NPPB-DIN Bus rail power supply
35mm standard rail
NPPB-BS210 I/O terminal base
Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.
NPPB-BSC028 Dust cover
Protect the exposed bus and split the combination as needed.
NPPB-SS5 Limiter
For fixed position, standard 2 sets
NPPB-TS35B Fixed piece
Material: metal iron, used for rail load-bearing reinforcement, standard 2 pieces
