NPPT-CD11D

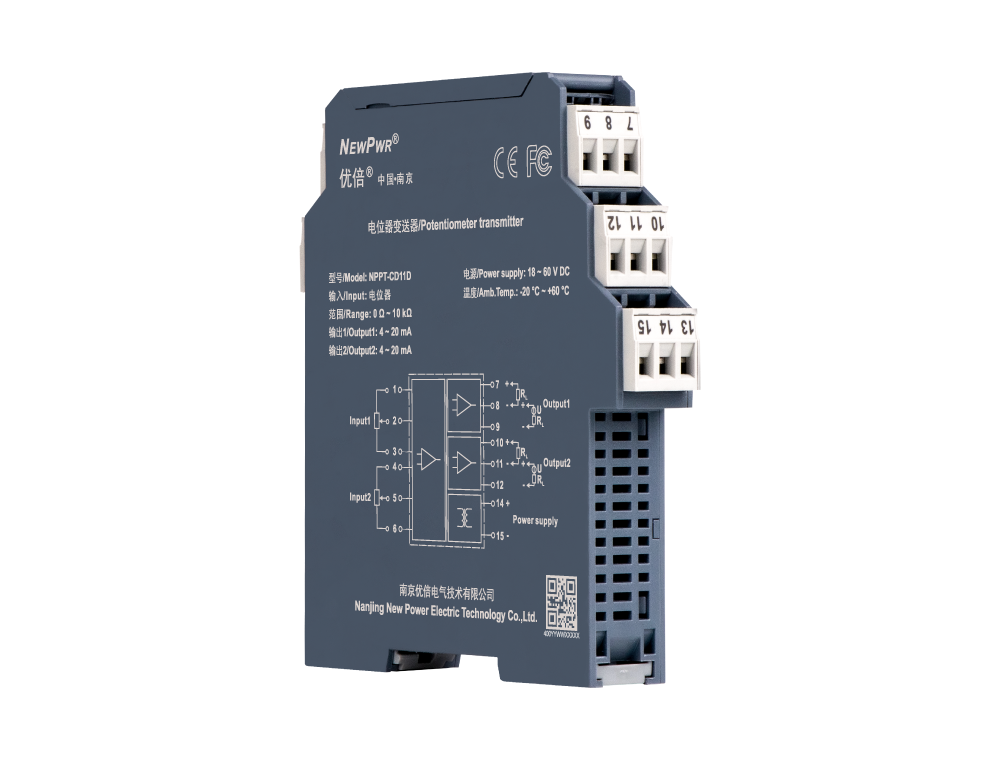

This potentiometer transmitter converts the 3-wire potentiometer signals to 4~20mA signals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.

Input signal

0～10 kΩ

Output signal

4～20 mA

Channels

2 inputs/2 outputs

Power Supply Mode

24VDC terminal power supply

Share

NPPT-CD11D

Product details Technical data Accessory Download

contrast

【Core technology】


【Installation and disposal】

C系列注塑外壳安装.gif C系列注塑外壳拆卸.gif

Installation Disposal

【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

Supply

Power supply

18 ~ 60 V DC

Input

Input signal

3-wire potentiometer: 0 Ω ~ 10 kΩ

Output

Output signal	4 ~ 20 mA
Load resistance	RL ≤ 550 Ω

Transfer characterisics

Accuracy	0.1 %F.S.
Temperature drift	30 ppm/℃

General parameters

Response time	≤ 500 ms
Power dissipation	1.2 W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 1500V AC (Input /Output/Power supply)
Insulation resistance	≥ 100 MΩ (Input /Output/Power supply)

Operating conditions

Operation temperature	-20 ℃ ~ +60 ℃
Storage temperature	-40 ℃ ~ +80 ℃

State

Output states

Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.

Mechanical specifications

Connection method	Screw connection
Dimension	17.8mm (W) × 110mm (H) × 117mm (D)
Mounting type	DIN35 mm

Certified data

Product approvals

CE, FCC

NPPB-DIN Bus rail power supply

35mm standard rail

NPPB-BS210 I/O terminal base

Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.
