Product SPD S-FLS-2-24.Ex

S-FLS-2-24.Ex

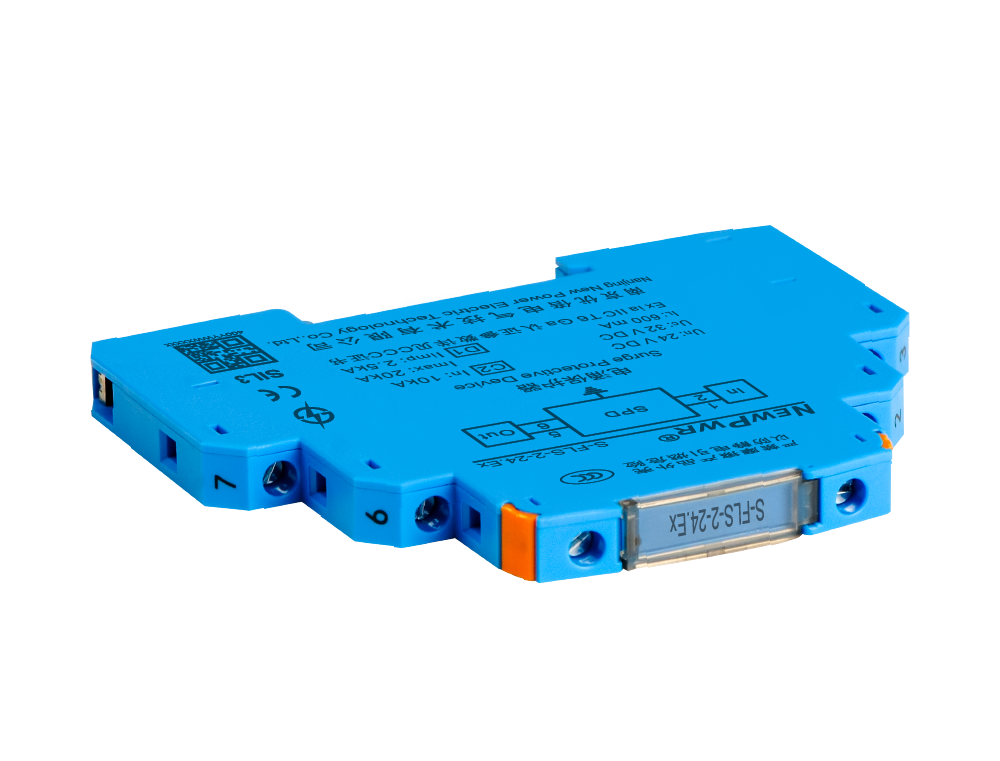

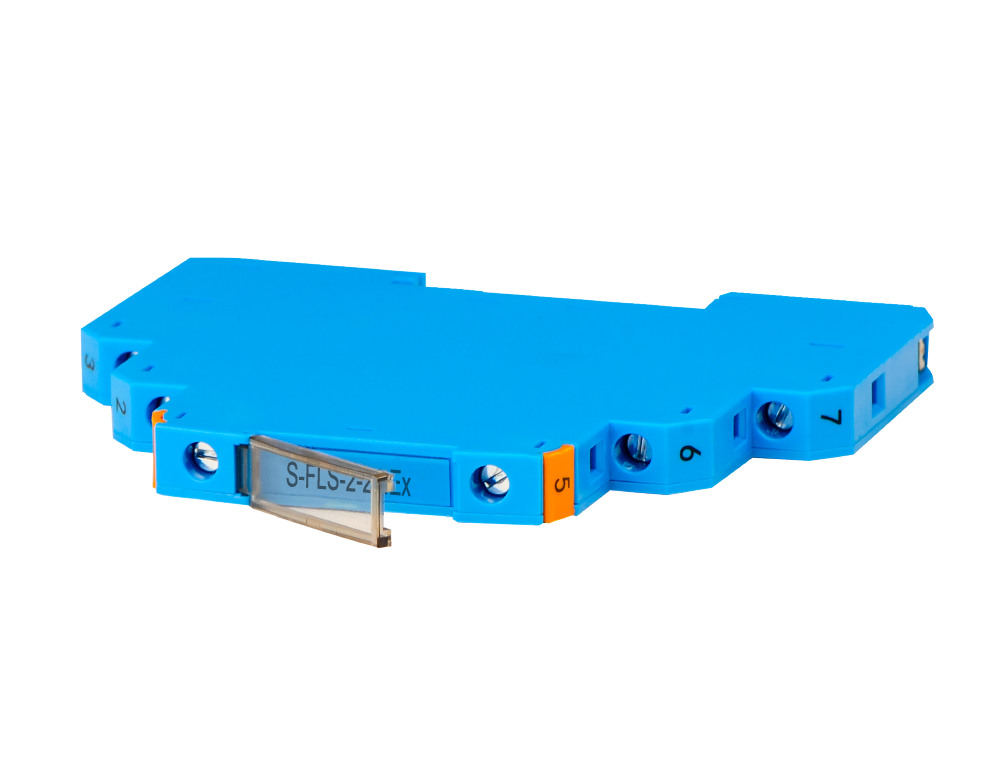

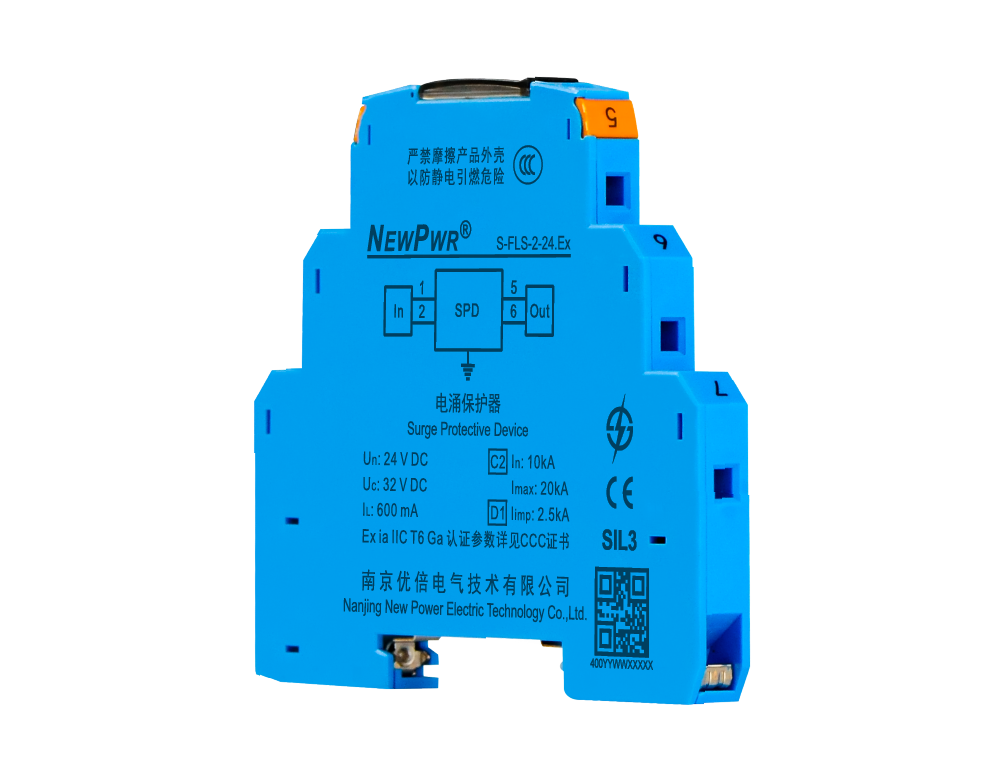

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 2-wire pressure transmitter, valve positioner, electrical converter, flowmeter, solenoid valve and other field instruments and FF, PROFIBUS PA ect.

Type

Wire system

Ex

Ground protection

Share
S-FLS-2-24.Ex
Product details Technical data Download
contrast

【Core technology】


【Installation and disposal】






Installation                                               Disposal



【Technical data】 General parameters 雷电参数 Operating conditions 外壳材料 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un 24 V
Max. continuous operating voltage Uc(DC) 32 V
Max. continuous operating voltage Uc(AC) 22.5 V
Nominal current IL 600 mA
Series impedance 1.8 Ω
Response time Ta ＜ 1 ns
Bandwidth fG(100 Ω resistance) 10 MHz
雷电参数
Total lightning impulse current Iimp(10/350 μs) ,D1 5 kA
Lightning impulse current Iimp(10/350 μs) ,D1 2.5 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 10 kA
Voltage protection level Up(8/20 μs) ，C2 L – L ≤ 60 V/ L – PE ≤ 600 V
Voltage protection level Up(1 kV/μs) ，C3 L – L ≤ 45 V/ L – PE ≤ 600 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
外壳材料
Material PC
Flame retardant grade(UL94) V0
Protection degree IP20
Mechanical specifications
Connecting wire size 0.2 mm2 ~ 2.5 mm2
Installtion 35 mm DIN rail
Grounding mode Rail/ terminal (optional)
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals CNEX, SIL, CE, FCC, CCC
Device type Type A
HFT 0
Operating mode Low / high
SIL SIL3
λS (1 FIT=10-9/h) 9.40 FIT
λDU (1 FIT=10-9/h) 0.464 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 9.864 FIT
SFF 95.3%
PFDavg(T1=1Y) 2.03E-06
PFH 4.60E-10 1/h
Intrinsically safe circuit certification Ex ia ⅡC T6 Ga
Ui 30 V
Ii 50 mA
Pi 375 mW
Ci 0 μF
Li 0 mH
NPEXA-C11

一入一出

热电偶输入安全栅
