Product SPD S-FLS-2-5

S-FLS-2-5

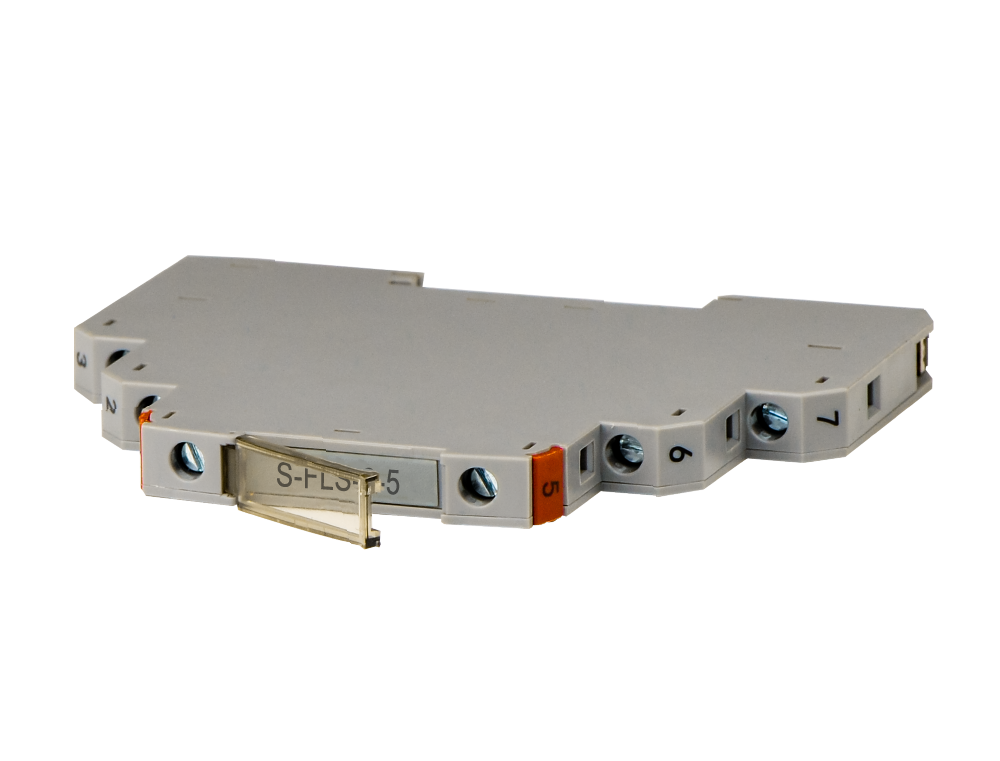

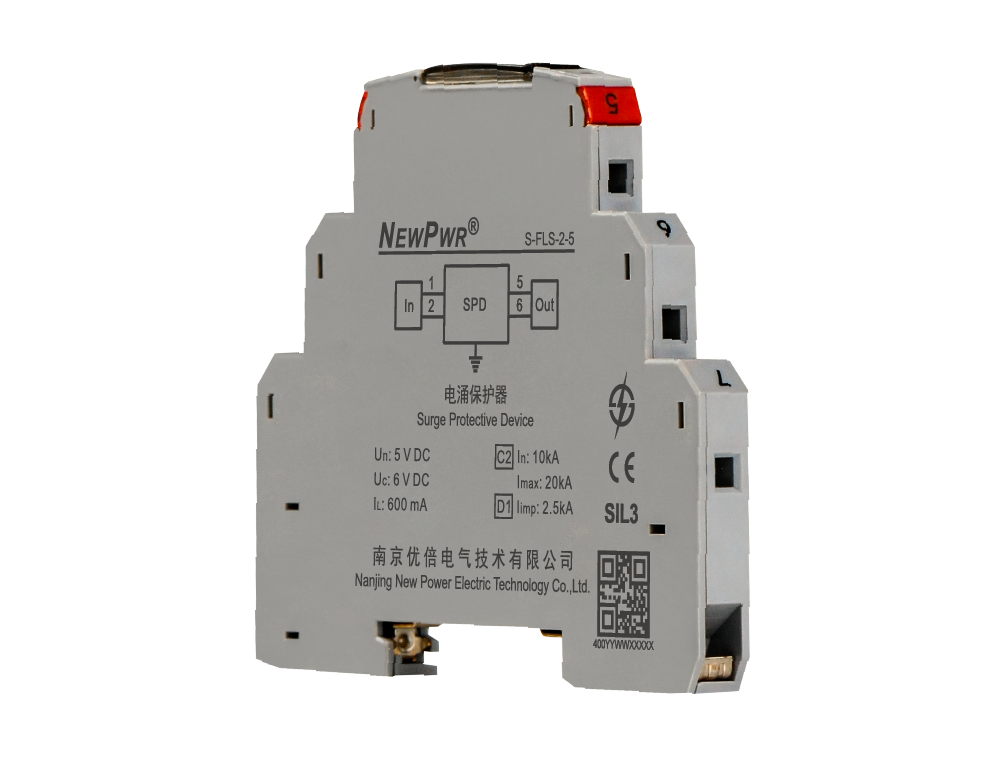

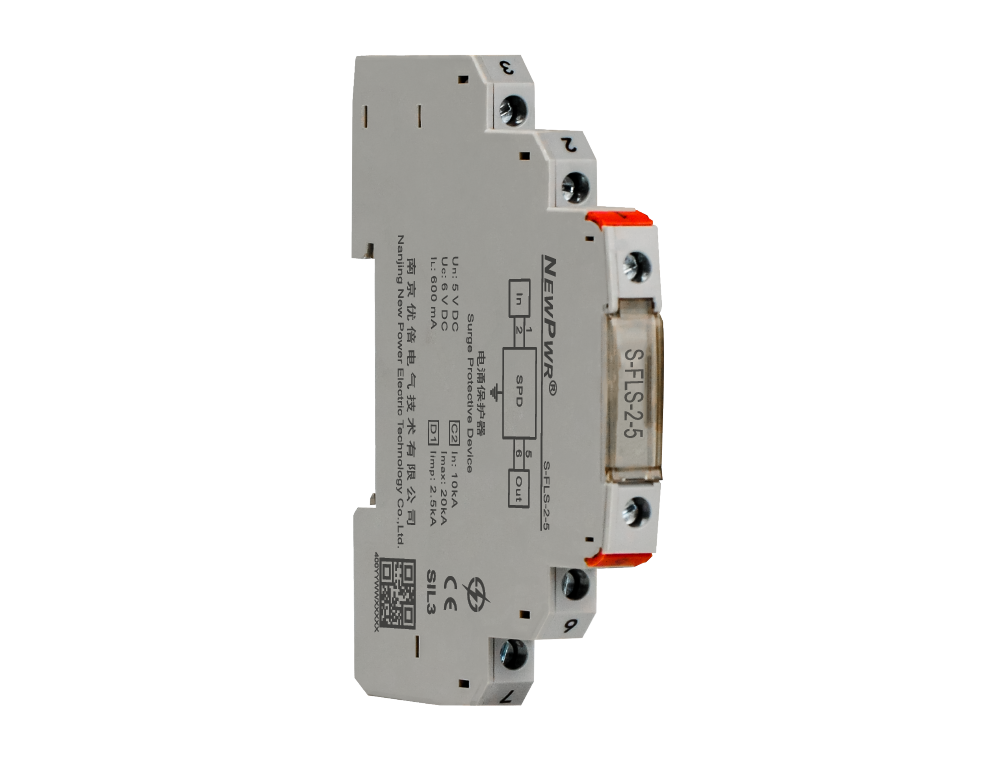

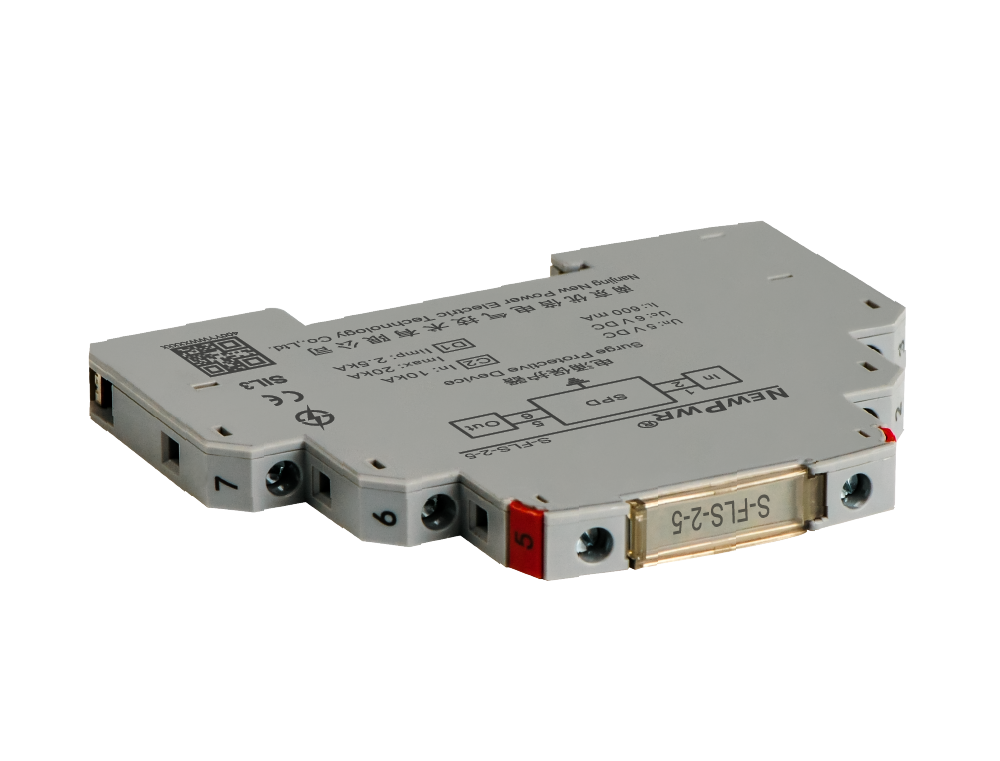

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 2 wire RTD，TC，RS-485，MODBUS，PROFIBUSDP，CAN ect.

Type

Wire system

Ex

Ground protection

Share
S-FLS-2-5
Product details Technical data Download
contrast

【Core technology】


【Installation and disposal】






Installation                                               Disposal



【Technical data】 General parameters 雷电参数 Operating conditions 外壳材料 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
标称电压Un 5 V
直流最大持续工作电压Uc 6 V
交流最大持续工作电压Uc 4 V
通用标称电流IL 600 mA
串联阻抗 1.8 Ω
响应时间Ta ＜ 1 ns
频宽fG 100 MHz
雷电参数
总雷电冲击电流Iimp(10/350 μs)，D1 5 kA
每线雷电冲击电流Iimp(10/350 μs)，D1 2.5 kA
最大放电电流Imax(8/20 μs)，C2 20 kA
每线标称放电电流In(8/20 μs)，C2 10 kA
保护电压Up(8/20 μs)，C2 L – L ≤ 45 V/ L – PE ≤ 600 V
保护电压Up(1 kV/μs)，C3 L – L ≤ 15 V/ L – PE ≤ 600 V
Operating conditions
工作温度范围 -40 ℃ ~ +80 ℃
外壳材料
外壳材料 PC
阻燃等级(UL94) V0
防护等级 IP20
Mechanical specifications
最小安装导线截面积 0.2 mm2
最大安装导线截面积 2.5 mm2
安装方式 DIN35 mm导轨安装
接地方式 导轨接地/端子接地（选配）
Certified data
测试标准 IEC 61643-21/GB/T 18802.21
产品认证 SIL, CE, FCC, 防雷
设备类型 Type A
硬件故障裕度(HFT) 0
操作模式 低/高
安全完整性等级 SIL3
λS (1 FIT=10-9/h) 9.40 FIT
λDU (1 FIT=10-9/h) 0.464 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 9.864 FIT
SFF 95.3%
PFDavg(T1=1Y) 2.03E-06
PFH 4.60E-10 1/h
NPEXA-C11

一入一出

热电偶输入安全栅
