Energy Transmitter

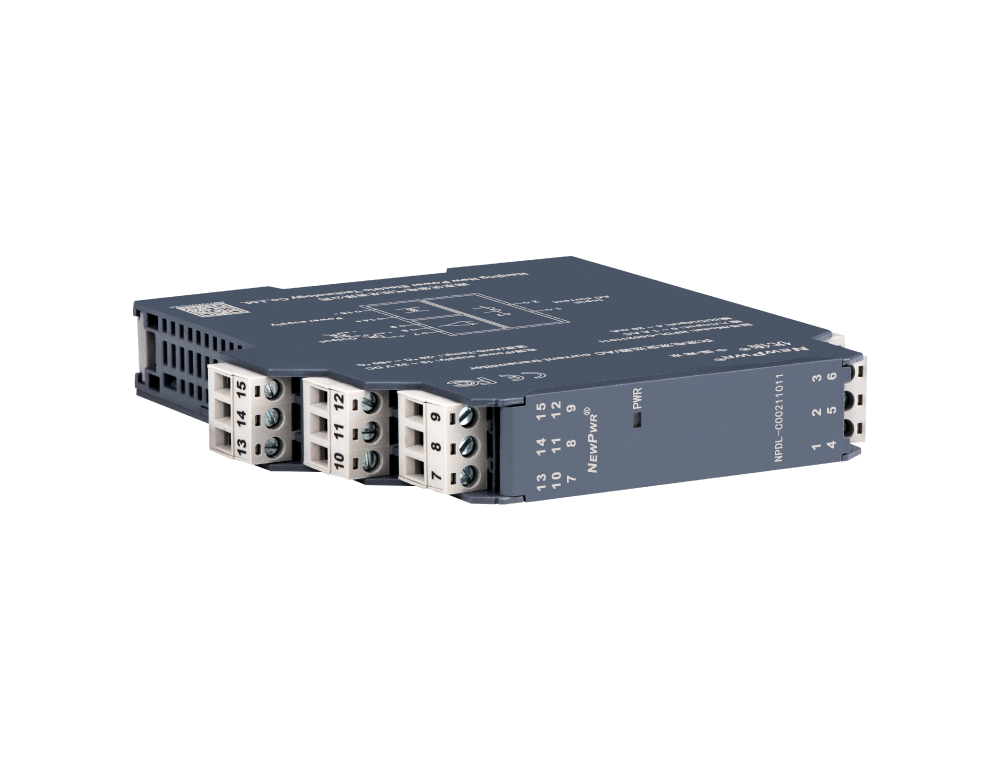

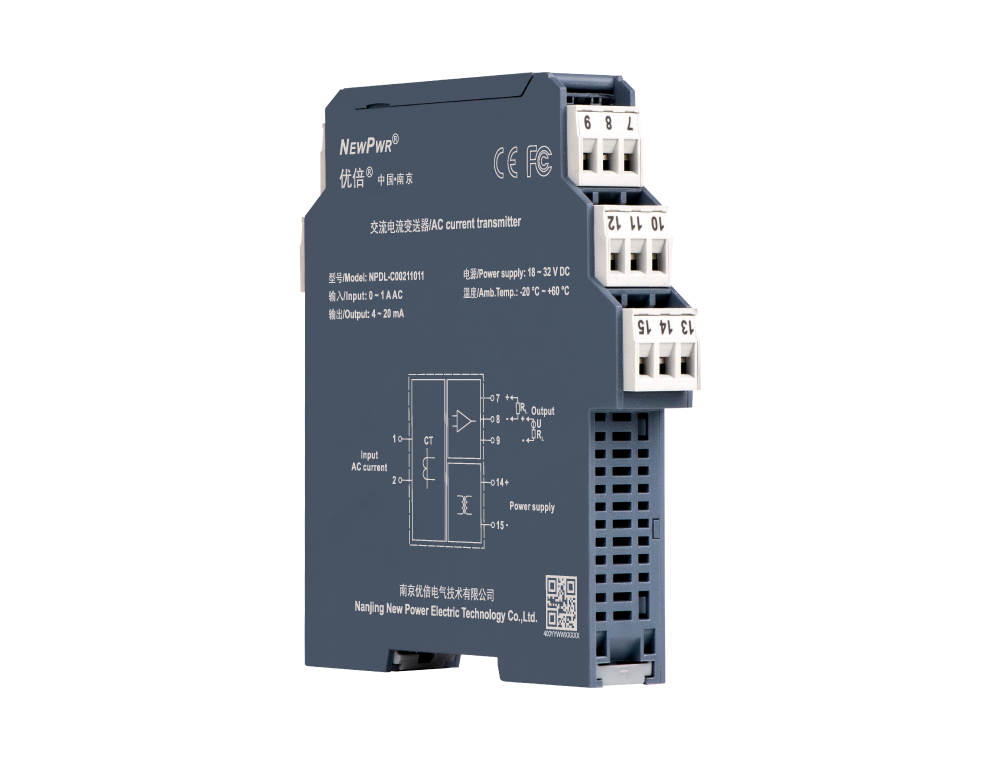

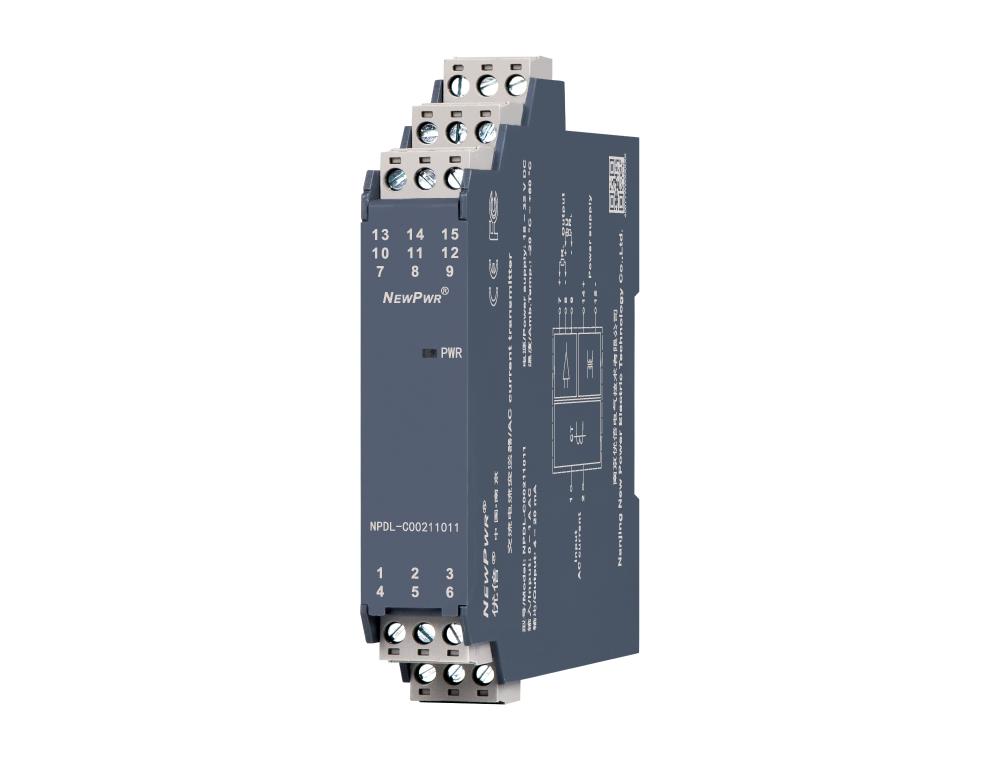

NPDL-C00211011

This AC current transmitter converts the 0 ~ 1 A AC signals to current signals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other.

Share

NPDL-C00211011

Technical data Download

contrast

【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

Supply

Power supply

18 ~ 32 V DC

Input

Input signal	0 ~ 1 A AC
Frequency range	40 Hz ~ 400 Hz
Overload capacity	double input nominal value

Output

Output signal	4 ~ 20 mA
Load resistance	RL ≤ 550 Ω

Transfer characterisics

Accuracy	0.2 %F.S.（0 ~ 120%）
Temperature drift	50 ppm/℃

General parameters

Response time	＜ 330 ms
Power dissipation	＜ 1W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 1500V AC (Input /Output/Power supply)
Insulation resistance	≥ 100 MΩ (Input /Output/Power supply)
