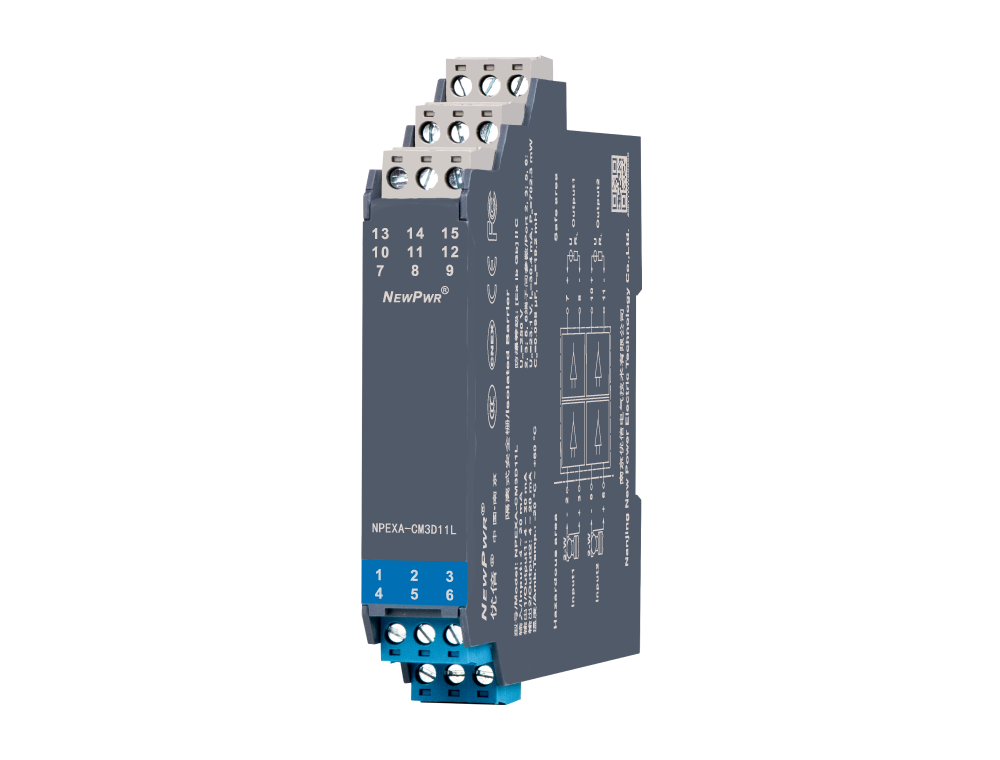

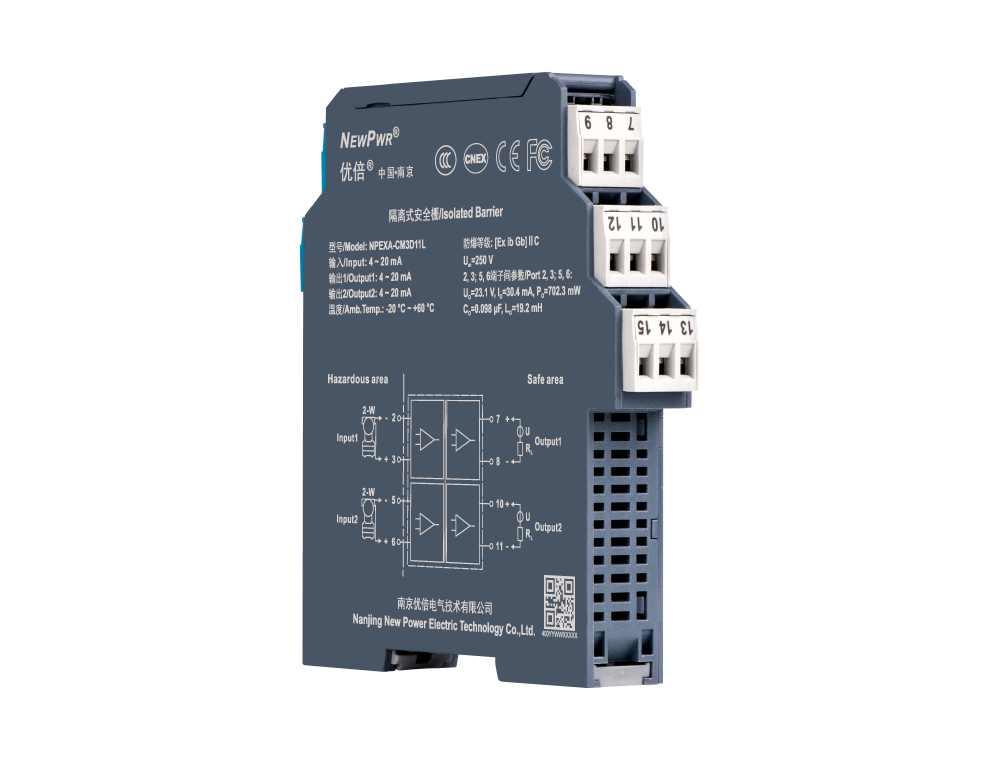

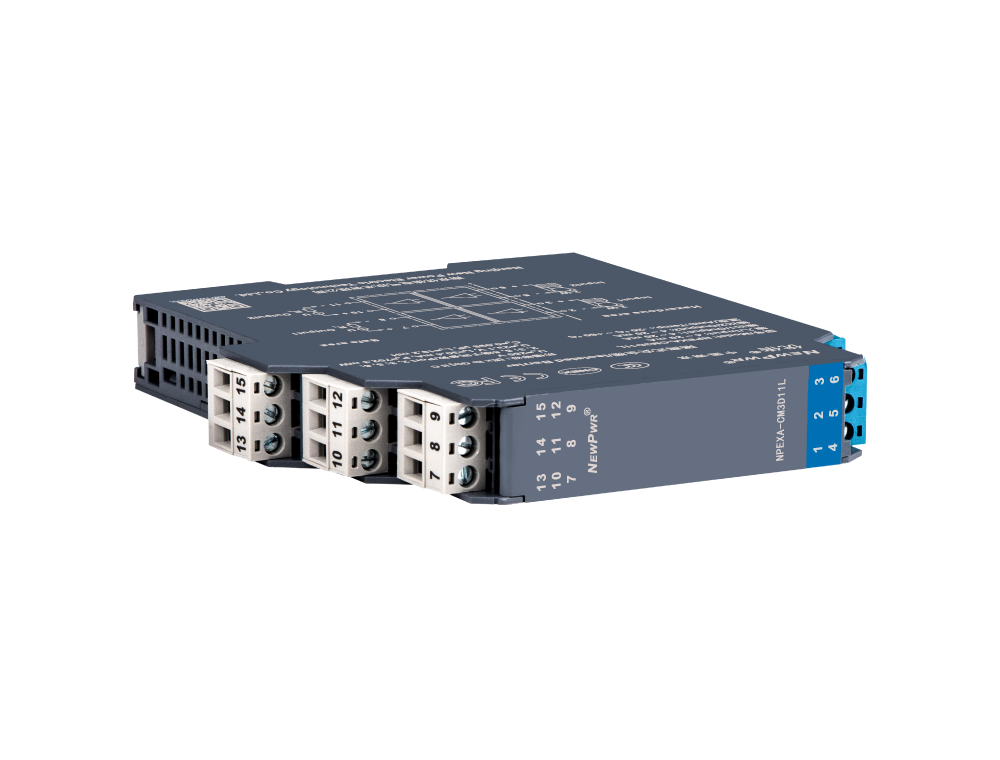

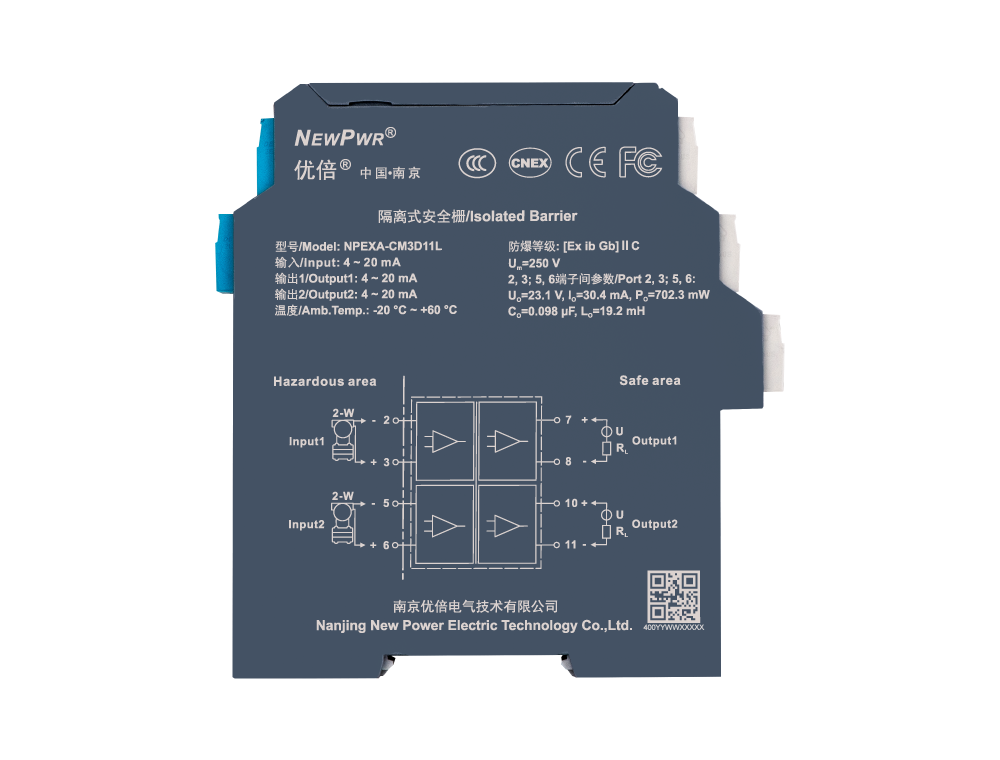

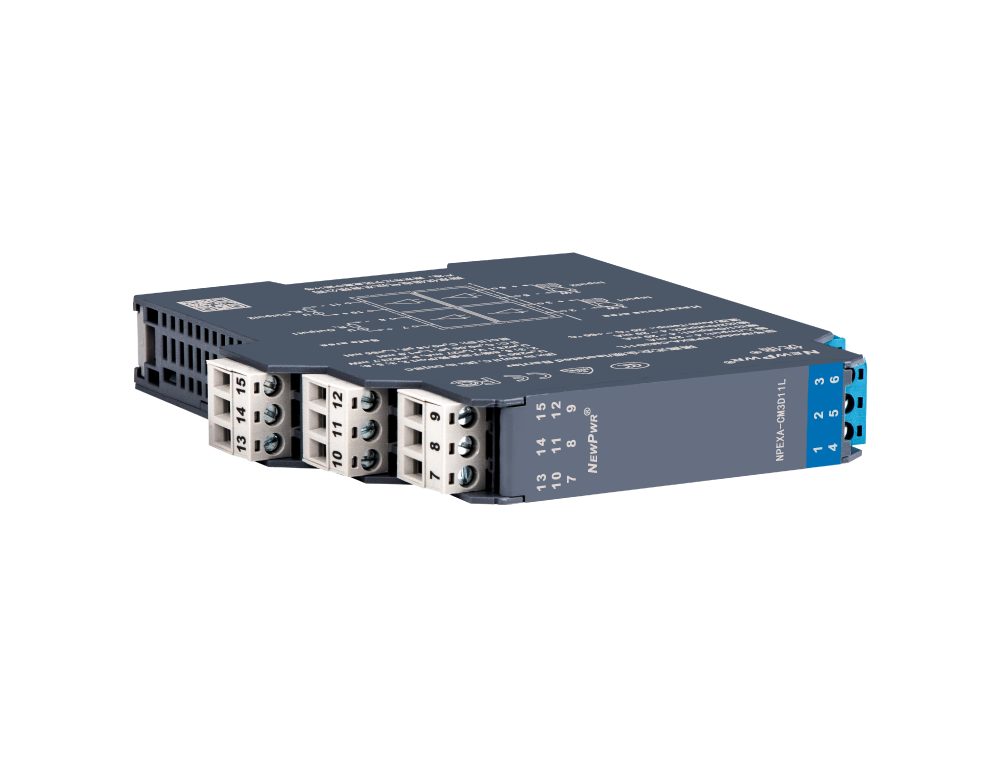

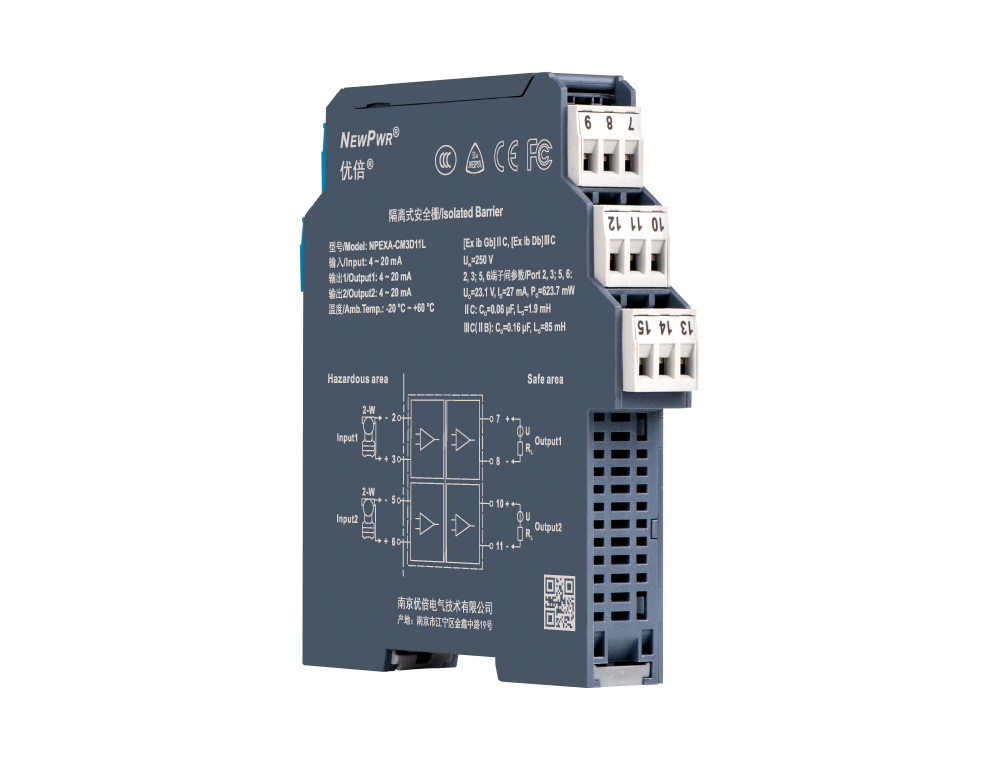

Product Isolated Barrier NPEXA-CM3D11L

NPEXA-CM3D11L

Analog input isolated barrier, it provides transmitters with power in the hazardous area and transfers 4~20mA signals from a hazardous area to a safe area. It allows transmission of HART communication signals. The input and output is galvanically isolated from each other.

Input signal

Output signal

Channels

Power Supply Mode

HART

Share
NPEXA-CM3D11L
Product details Technical data Download
contrast

Core technology】


【Installation and disposal】






Installation                                               Disposal







【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Loop Powered 18 ~ 30 V DC
Input
Input signal 4 ~ 20 mA4 ~ 20mA, HART
Available voltage (U-6-RL×I)V, U≤ 24V; (18-RL×I)V, U> 24V; U is loop powered voltage
Output
Output signal 4 ~ 20mA, HART
Transfer characterisics
Accuracy 0.4 %F.S.
Temperature drift 0.01 %F.S. /℃
General parameters
Response time ≤ 2 ms
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 2500V AC (intrinsically safe side /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CNEX, CE, FCC, CCC
Ex marking [Ex ib Gb]ⅡC
Um 250 V
Uo 23.1 V (Terminals 2, 3; 5, 6)
Io 30.4 mA (Terminals 2, 3; 5, 6)
Po 702.3 mW (Terminals 2, 3; 5, 6)
Co 0.098 μF (Terminals 2, 3; 5, 6)
Lo 19.2 mH (Terminals 2, 3; 5, 6)
