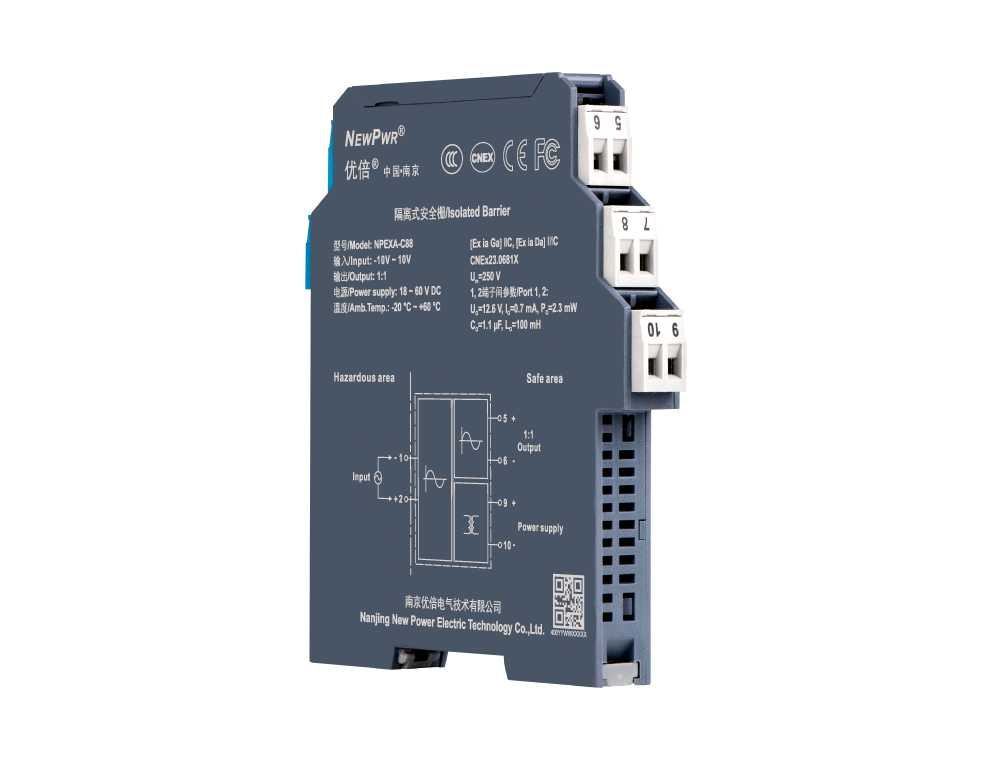

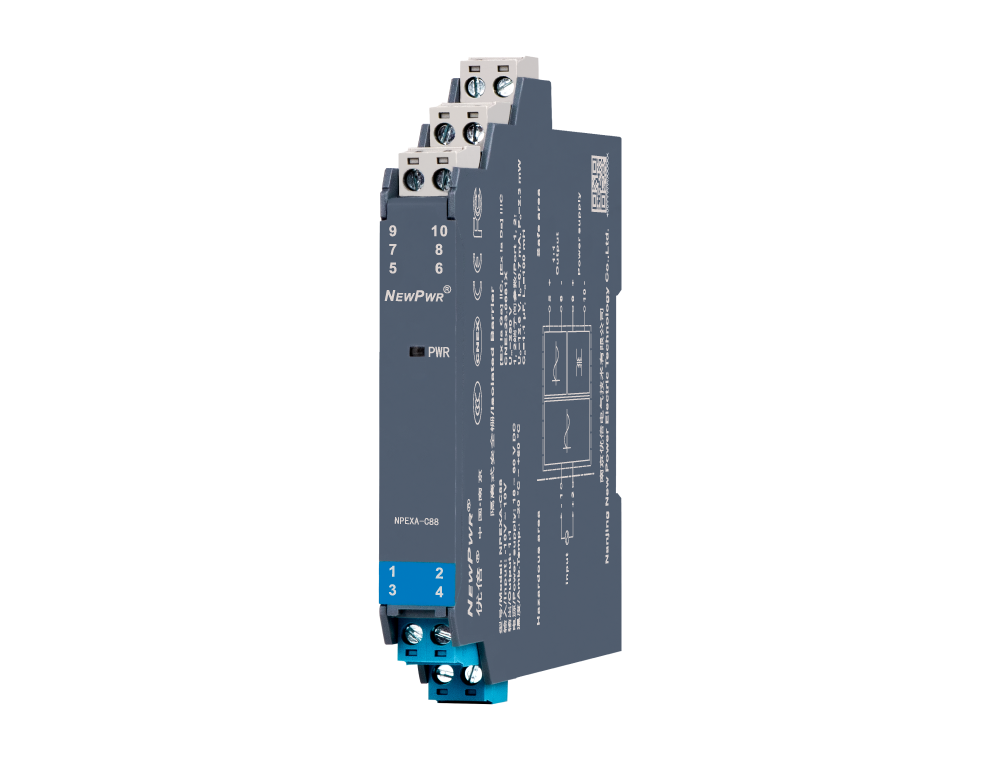

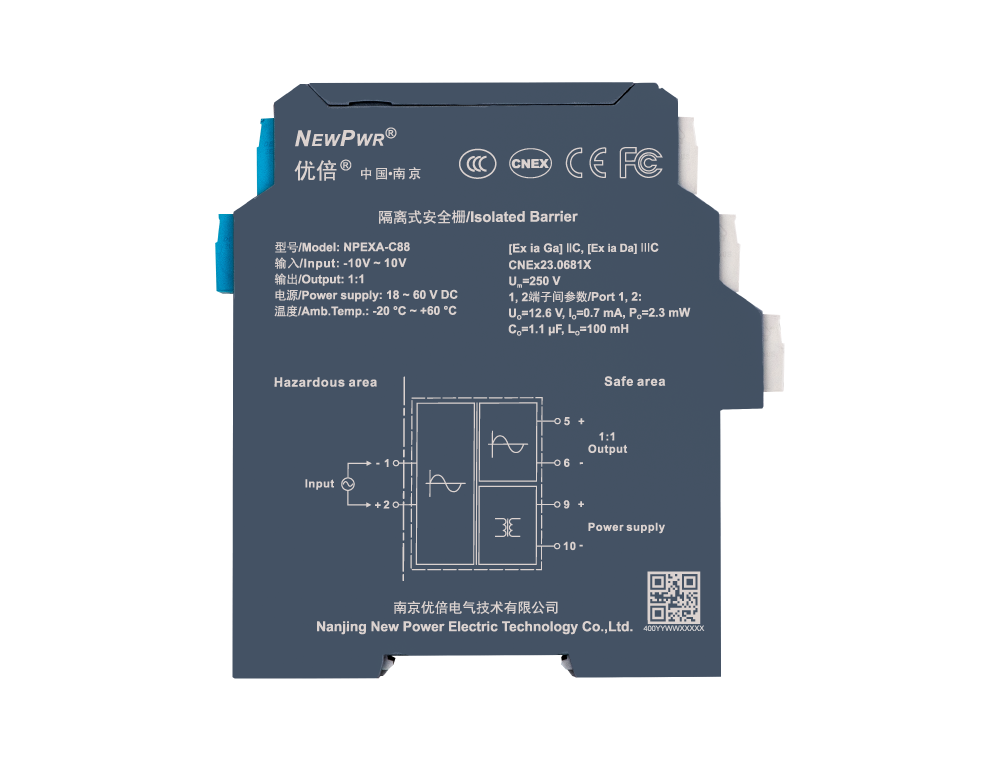

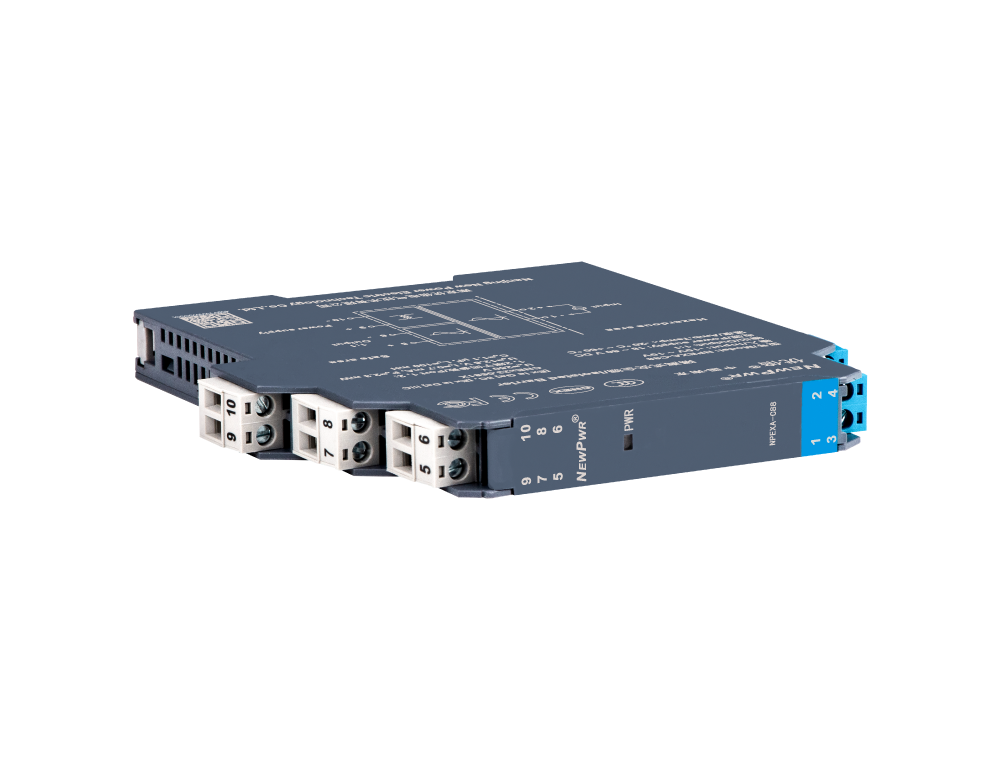

NPEXA-C88

Vibration sensor input isolated barrier, it transfers the output signal of magneto-electric transducer from a hazardous area to a safe area. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other.

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXA-C88
Product details Technical data
contrast

【Core technology】


【Installation and disposal】






Installation                                               Disposal






【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal -10 V AC ~ 10 V AC
Line resistance ≥ 10 kΩ
Cut-off frequency -0.1 dB（1 kHz）
Output
Output signal -10 V AC ~ 10 V AC
Load resistance ＜ 10 Ω
Transfer characterisics
Accuracy 0.2 %F.S.
General parameters
Power dissipation 0.6 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side) ≥ 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, ⅢC, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CNEX, CE, FCC, CCC
Ex marking [Ex ia Ga]ⅡC, [Ex ia Da] ⅢC
Um 250 V
Uo 12.6 V (Terminals 1, 2)
Io 0.7 mA (Terminals 1, 2)
Po 2.3 mW (Terminals 1, 2)
Co 1.1 μF (Terminals 1, 2)
Lo 100 mH (Terminals 1, 2)
