SPD

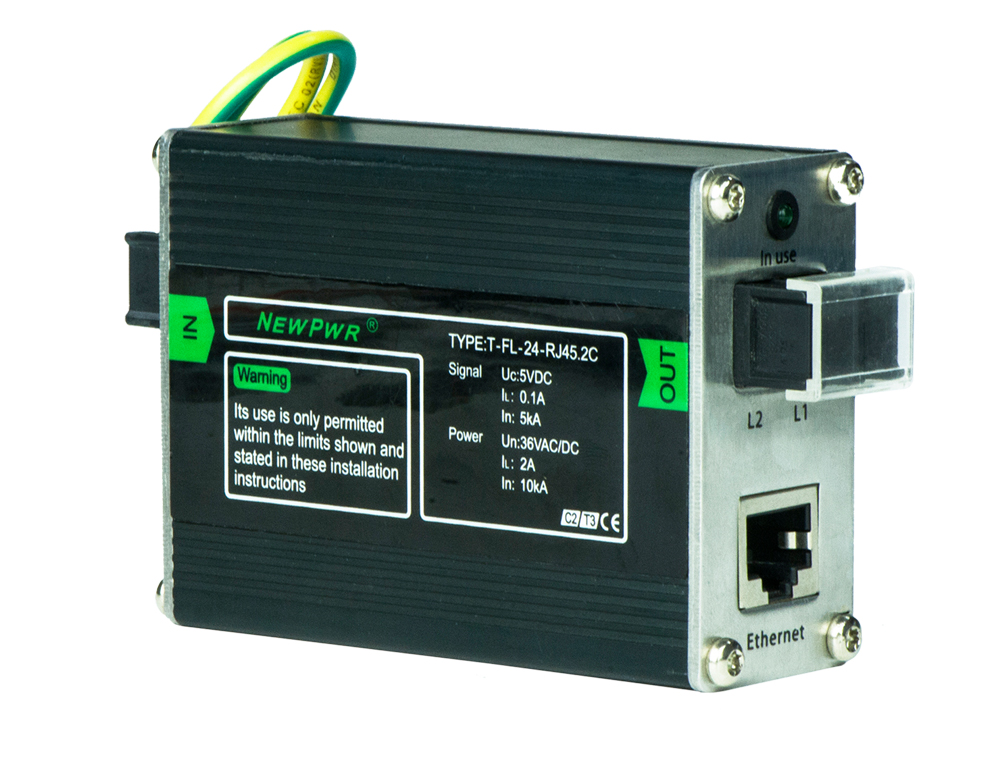

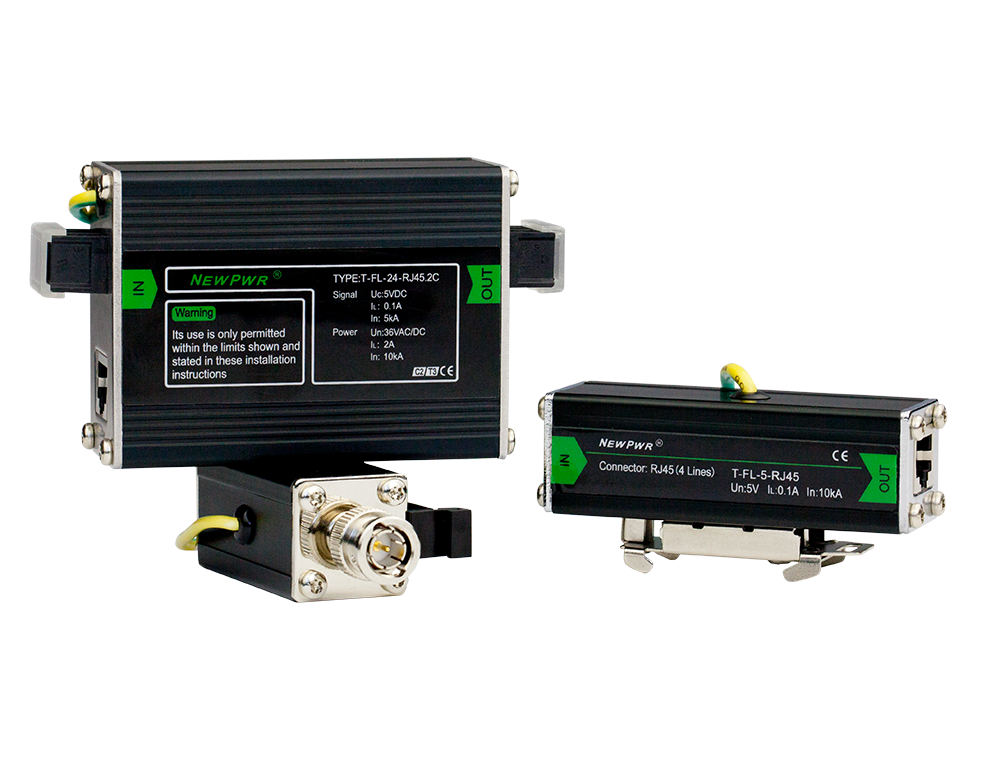

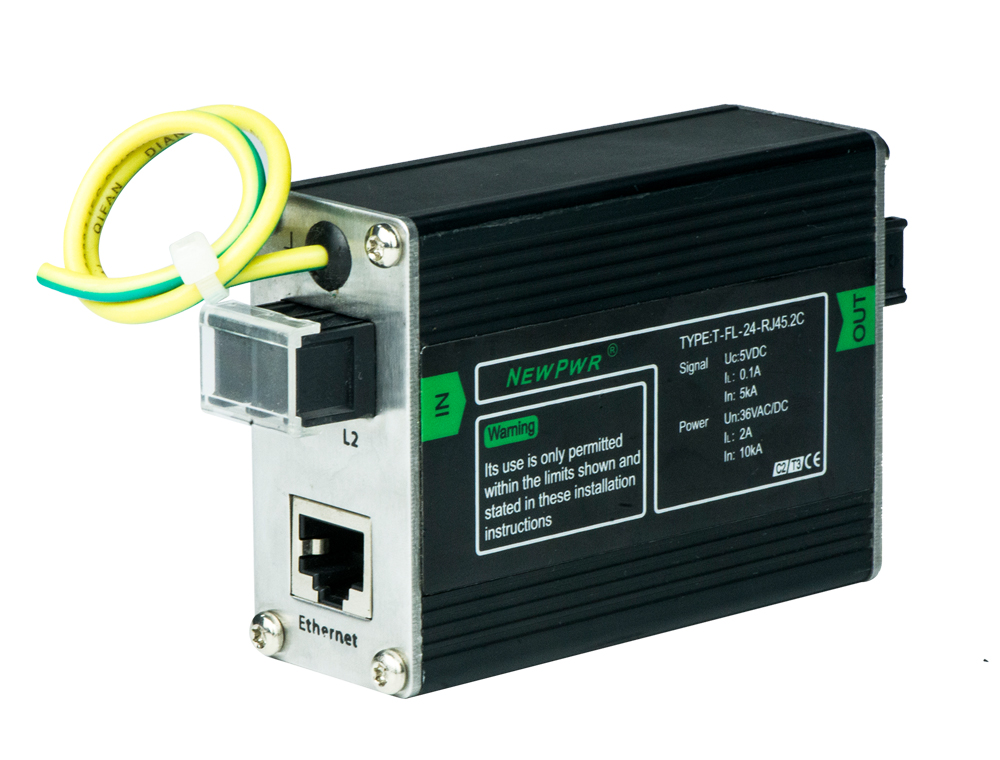

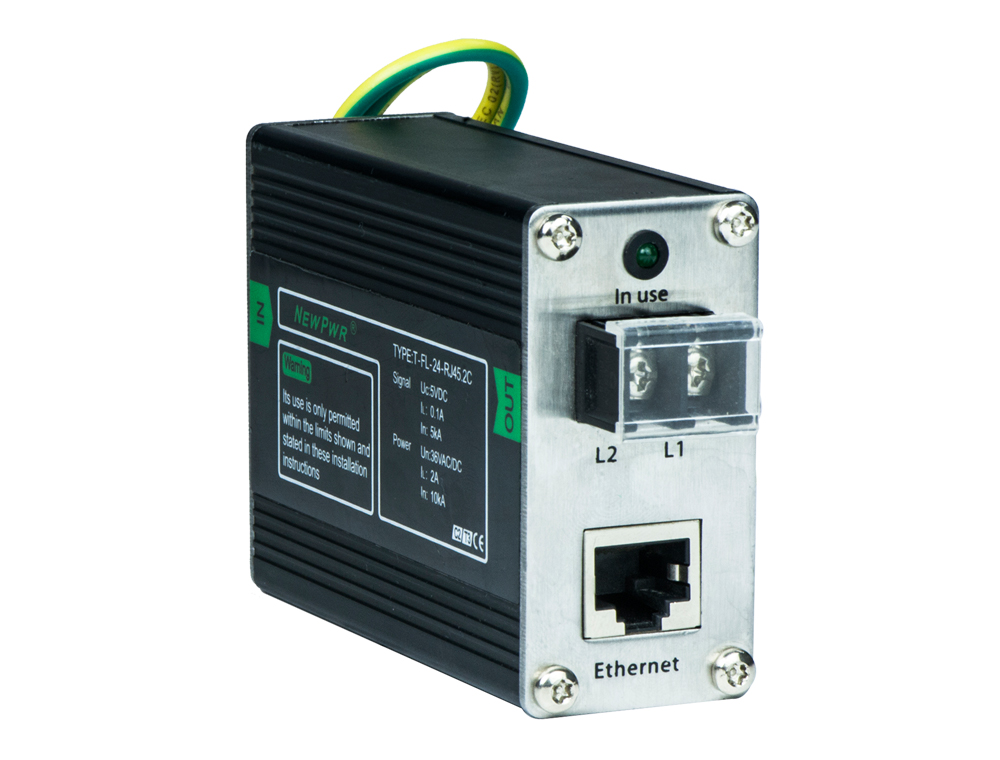

T-FL-24-RJ45.2C

According to IEC and GB standard，SPD can release high voltage pulse energy,and limit surge in a safety voltage level. It is suitable for LPZ0B ~ LPZ2 area and higher.

Share

T-FL-24-RJ45.2C

Product details Technical data Download

contrast

【Core technology】


【Installation and disposal】

Installation Disposal

【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

General parameters

Nominal voltage Un	Network: 5 VDC, Power: 24 VAC/DC
Max. continuous operating voltage Uc	Network: 5 VDC, Power: 48 VAC/DC
Nominal current IL	Network: 500 mA, Power: 5 A
Response time Ta	1 ns
Bandwidth fG	100 MHz

Lightning parameters

Lightning impulse current Iimp(10/350 μs) ,D1	Network: 0.5 kA, Power: 1 kA
Max. discharge current Imax(8/20 μs) ,C2	20 kA
Nominal discharge current In(8/20 μs) ,C2	Network: 2.5 kA, Power: 5 kA
Voltage protection level Up(8/20 μs) ，C2	Network≤35V(L-L)/600V(L-PE), Power<300 V
